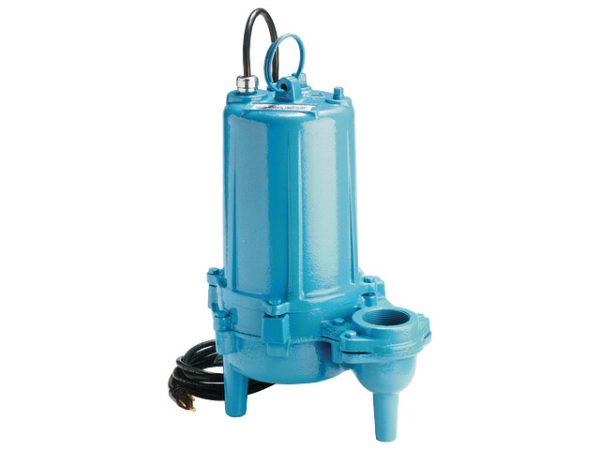

Little Giant WS52 1hp sewage pump Series offers high-performance capabilities in 115V, 20′ cord, automatic operation, with mechanical float switch.
| Item: | 620003 |
| Model: | WS52AM |
Stock: Call for availability
Technical support: Yes
Shipping time: Same day
Shipping: USA and Canada
Talk to a pump specialist now: (303) 699-7845
Get a Fast Quote from a Pump Specialist
Little Giant WS52 1hp sewage pump Series offers high-performance capabilities in 115V, 20′ cord, automatic operation, with mechanical float switch.
| Item: | 620003 |
| Model: | WS52AM |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 11.6 A |
| Amps – Starting | 47.4 A |
| Full Load Watts | 940 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJOW |
| Pump Power Cord Gauge | 14-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 135 gpm / 8100 gph |
| Minimum Flow Rate – 60Hz | 10 gpm / 600 gph |
| Shut-Off | 23 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 23 ft |
| Stages | 1 |
| Max Solid Handling Size | 2 “ |
| Switch Type | Piggyback Mechanical Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 12.25 “ |
| Product Width | 9.38 “ |
| Product Height | 14 “ |
| Pump Length | 12.25 “ |
| Product Weight | 59 lb |
| Product Weight w/ Pack | 59 lb |
| Carton Length | 12.25 “ |
| Carton Width | 9.5 “ |
| Carton Height | 19.5 “ |
| Off Level – Range | Adjustable |
| On Level – Range | Adjustable |
Other |
|
| Accessories Included | None |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
