620240 – FLS-400
Click to rate this post!
[Total: 0 Average: 0]

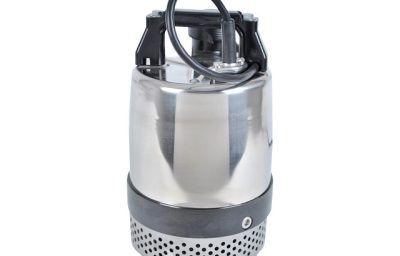

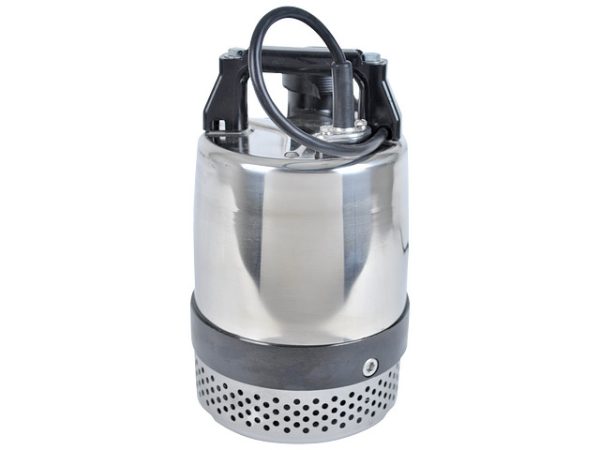

This high-performance dewatering pump features 1/2 HP PSC motor with overload protection, stainless steel shell and suction strainer and double mechanical seals. Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.
| Item: | 620240 |
| Model: | FLS-400 |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 5 A |
| Amps – Starting | 24 A |
| Full Load Watts | 488 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 16-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 60 gpm / 3600 gph |
| Shut-Off | 37 ft |
| Max PSIG – 60Hz | 16 PSI |
| Max Solid Handling Size | 0.06 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Cast Iron |
| Impeller Type | Semi-open |
| Impeller Material | Urethane Rubber |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Viton Retainer |
| Seal Type | Retainer |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 2 “ |
| Product Length | 8 “ |
| Product Width | 8 “ |
| Product Height | 12 “ |
| Pump Length | 8 “ |
| Product Weight | 26 lb |
| Product Weight w/ Pack | 26.15 lb |
| Carton Length | 10 “ |
| Carton Width | 10 “ |
| Carton Height | 13 “ |
Other |
|
| Accessories Included | None |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
