The XS Series was designed with performance, serviceability and reliability in mind.
| Item: | 65040309101 |

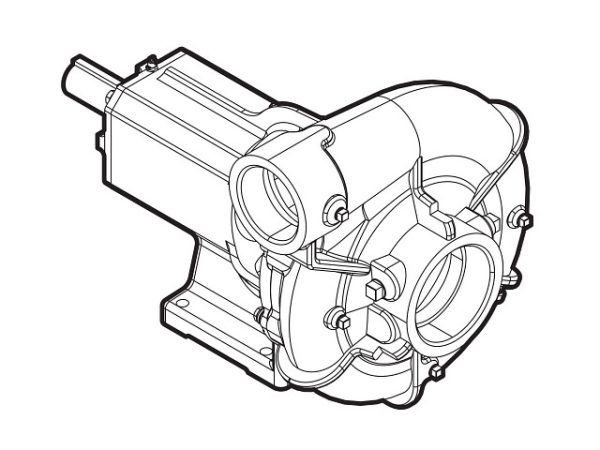

| Model: | XS439-BFVM-CW |
The XS Series was designed with performance, serviceability and reliability in mind.
| Item: | 65040309101 |
| Model: | XS439-BFVM-CW |
Ratings |
|
| Frequency | Not Applicable |
| Phases | Not Applicable |
| Volts | Not Applicable |
| Stages | 1 |
| Motor Enclosure | Not Applicable |
| Rotation | Clockwise facing the shaft |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Grooved |
| Discharge Diameter | 3 “ |
| Suction Diameter | 4 “ |
| Suction | Grooved |
| Pump Length | 21.5 “ |
| Product Weight | 135 lb |
| Pump Height | 15.38 “ |
| Pump Width | 14 “ |
| Hydraulic Fit | N/A |
Other |
|
| Warranty Standard Time | 12 Months |
