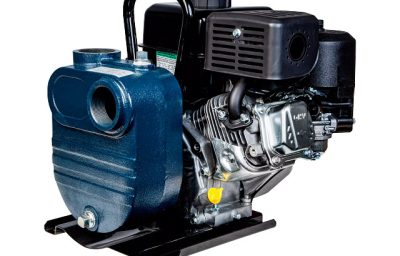

These heavy-duty, gas engine, self-priming pumps are an ideal choice for water transfer applications and temporary irrigation.
| Item: | 90271112 |
| Model: | FBSGF-12H |
These heavy-duty, gas engine, self-priming pumps are an ideal choice for water transfer applications and temporary irrigation.
| Item: | 90271112 |
| Model: | FBSGF-12H |
Ratings |
|
| Motor | Surface |
| Protection [IP] | Not Applicable |
| Engine Size – Driven Pumps (CC) | 270 |
| Stages | 1 |
| Motor NEMA Frame Type | not applicable |
| Motor Cooling | Air |
| Rotation | Clockwise facing the shaft |
| Temperature Rating | 200 °F |
Liquid |
|
| Maximum Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Motor Bracket Material | Cast Iron |
| Discharge Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Suction Material | Cast Iron |
| Engine Brand For Driven Pumps | Honda |
| Engine Type For Driven Pumps | Air Cooled, 4 Stroke, OHV |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 3 “ |
| Impeller Diameter | 5 “ |
| Suction Diameter | 3 “ |
| Suction | Threaded – FNPT |
| Pump Length | 21.19 “ |
| Product Weight | 110 lb |
| Carton Length | 23 “ |
| Carton Width | 21.69 “ |
| Carton Height | 22.44 “ |
| Pump Height | 16.6 “ |
| Pump Width | 18.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial |
