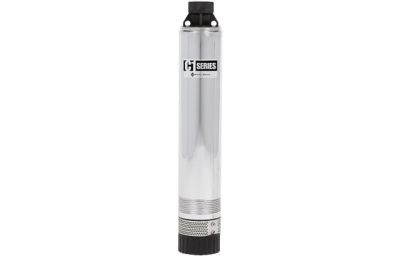

90301005 – 10C1-05P4-2W115

The Little Giant C1 Series is ideal for a variety of pumping needs: gray water removal, filtered effluent service water, water reclamation, aeration, and other fountain or pond applications, and agriculture. The optimized hydraulic design allows for increased performance and decreased power usage. The pump’s unique bottom suction design allows for maximum fluid drawdown without compromising durability or overall life, and it does not require the use of a flow induction sleeve. Intended specifically for use in a cistern or tank, C1 Series pumps are suitable for use in agricultural, residential, and commercial installations.



Item: 90301005
Model: 10C1-05P4-2W115

Ratings

HP 1/2 hp
Frequency 60 Hz
Phases Single-Phase
Volts 115 VAC
Wire 2-Wire
Lead Length 10 ft
Motor Submersible
Input Phase Single-Phase
Maximum Flow Rate – 60 Hz 13 gpm
Minimum Flow Rate – 60 Hz 5 gpm
Flow 10 gpm
Minimum Head – 60 Hz 83.71 ft
Shut Off 60 Hz 225 ft
Stages 6
Submersible Use Yes

Liquid

Materials of Construction

Pump Body Material Stainless Steel
Discharge Head Material Thermoplastic
Impeller Material Glass Filled Thermoplastic
Check Valve Yes
Check Valve Material Thermoplastic
Discharge Material Thermoplastic
Intake Screen Material Stainless Steel
Lead Insulation Material SJOOW
Diffuser Material Thermoplastic
Cable Guard Material Thermoplastic

Dimensions

Discharge Threaded – FNPT
Discharge Diameter 1.25 “
Pump Length 26 “
Product Weight 17 lb
Product Weight with Pack 19.15 lb
Carton Length 31.6 “
Carton Width 6 “
Carton Height 8.8 “
Pump Diameter 5 “

Other

Component Pump Part Number 90301005
Warranty Standard Time 12 Mo. from Date of Install / 24 Mo. from Date of Manufacturing
