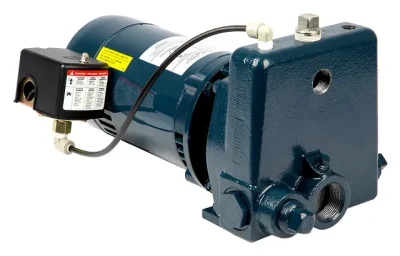

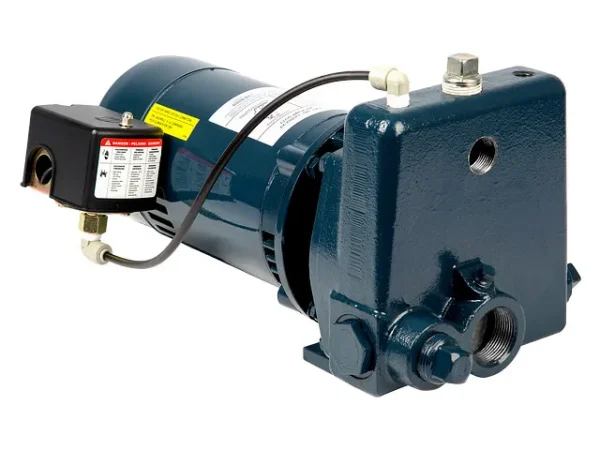

Franklin Electric C Series Cast Iron Convertible Jet Pump 91060053 – FE07CI-C
Click to rate this post!
[Total: 0 Average: 0]
The Franklin Electric 91060053 – FE07CI-C Convertible Jet Pump (C Series) is equipped with a stainless steel impeller for high performance and longevity. The C Series convertible jet pump delivers up to 16 gallons per minute from either shallow well or deep well installations.
| Item: | 91060053 |
| Model: | FE07CI-C |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 7.4 A |
| Stages | 1 |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 0.75 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 17.62 “ |
| Product Weight with Pack | 50 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
| Pump Height | 8.79 “ |
| Pump Width | 10.6 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Ideal for supplying fresh water to homes, cabins, farms that can be configured for a variety of pressures and flow choices |
