Franklin Electric SWJ Series Non-Corrosive Shallow Well Jet Pump 91090007 – FSWJ07P
Click to rate this post!
[Total: 0 Average: 0]

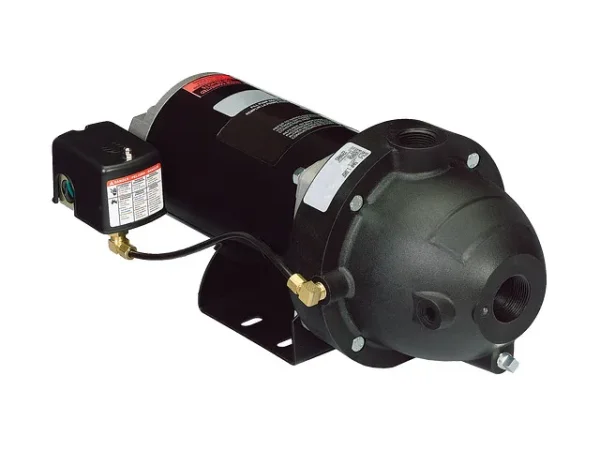

The Franklin Electric 91090007–FSWJ07P Shallow Well Jet Pump features non-corrosive thermoplastic construction, making it ideal for clean water installations without the fear of corrosion. The self-cleaning injector screen provides an additional level of anti-clogging for turbid environments where a shallow well jet pump is required.
| Item: | 91090007 |
| Model: | FSWJ07P |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 7.4 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Thermoplastic |
| Impeller | Closed |
| Impeller Material | Thermoplastic |
| Seal Material | Phenolic/Ceramic x Buna-N |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 18.19 “ |
| Product Weight | 31 lb |
| Product Weight with Pack | 31 lb |
| Carton Length | 19.88 “ |
| Carton Width | 11 “ |
| Carton Height | 12.25 “ |
| Pump Height | 8.19 “ |
| Pump Width | 9 “ |
Other |
|
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 24 Months |
| Applications | Ideal for the supply of fresh water to rural homes, farms, and cabins |
