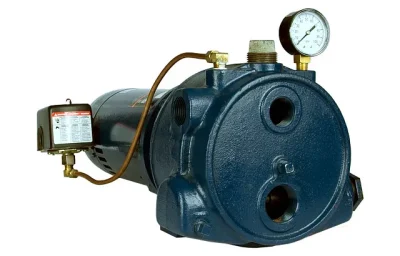

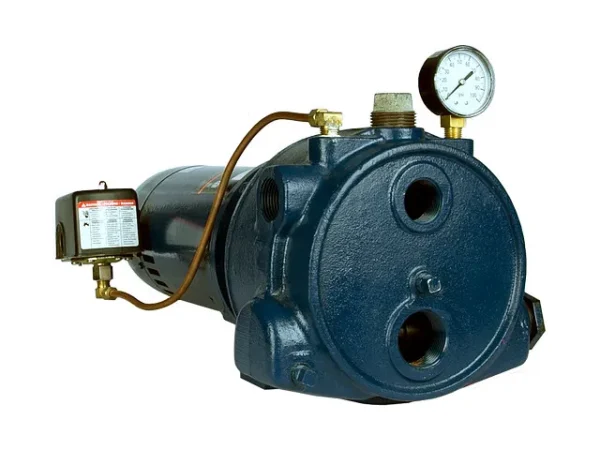

Franklin Electric Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump 91112011 – 1RM2-T
Click to rate this post!
[Total: 0 Average: 0]
The Franklin Electric 91112011 – 1RM2-T Convertible Pro Jet Pump (RM2) series is equipped with a stainless steel impeller for high performance and longevity. Capable of lifting from 100′ and delivering up to 23 gallons per minute from either shallow well or deep well, this series is the perfect choice.
| Item: | 91112011 |
| Model: | 1RM2-T |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Amps at 230 Volts | 3.8 A |
| Stages | 1 |
| Motor NEMA Frame Type | 56C Round Flange Keyed Shaft |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Motor Bracket Material | Cast Iron |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal | Mechanical Seal |
| Diffuser Material | Thermoplastic |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 19.06 “ |
| Product Weight | 53 lb |
| Product Weight with Pack | 60 lb |
| Carton Length | 25.75 “ |
| Carton Width | 12.38 “ |
| Carton Height | 14.88 “ |
| Pump Height | 8.76 “ |
| Pump Width | 10.15 “ |
Other |
|
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 12 Months |
| Applications | Ideal for supplying fresh water to homes, cabins, farms that can be configured for a variety of pressures and flow choices |
