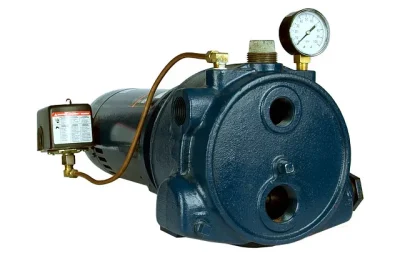

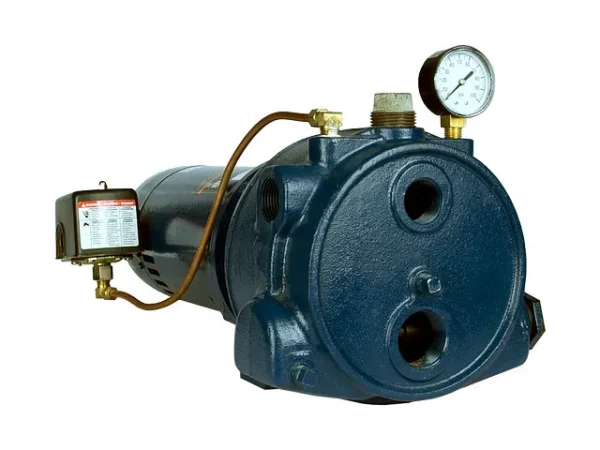

Franklin Electric Convertible Pro (RM2) Series Cast Iron Convertible Jet Pump 91140010 – FP1CI-C
Click to rate this post!
[Total: 0 Average: 0]
The Franklin Electric 91140010–FP1CI-C Convertible Pro Jet Pump (RM2) series is equipped with a stainless steel impeller for high performance and longevity. Capable of lifting from 100′ and delivering up to 23 gallons per minute from either shallow well or deep well, this series is the perfect choice.
| Item: | 91140010 |
|---|---|
| Model: | FP1CI-C |
| Ratings | |
|---|---|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 8.4 A |
| Motor Enclosure | ODP |
| Liquid | |
| Maximum Fluid Temperature | 140 °F |
| Materials of Construction | |
|---|---|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal | Mechanical Seal |
| Dimensions | |
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 19.65 “ |
| Product Weight | 53 lb |
| Product Weight with Pack | 53 lb |
| Carton Length | 25.75 “ |
| Carton Width | 12.38 “ |
| Carton Height | 14.88 “ |
| Pump Height | 8.76 “ |
| Pump Width | 8.13 “ |
| Other | |
| Drinking Water Agency Approvals | NSF/ANSI 372 |
| Warranty Standard Time | 24 Months |
| Applications | Ideal for supplying fresh water to homes, cabins, farms that can be configured for a variety of pressures and flow choices |
