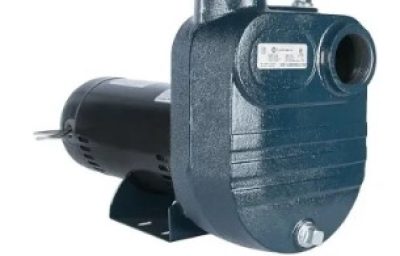

Franklin Electric FBSE-50K Close-Coupled Self-Priming Pump end | 92925005
Click to rate this post!
[Total: 0 Average: 0]
FBSE-50K Pump End features durable cast iron construction, making it long-lasting in various applications. This Franklin Electric FBSE-50K Pump End uses a 56J C Face threaded shaft motor mount, allowing you to pair it with your own motor. The semi-open cast iron impeller is ideal for handling fertilizer, salt water, dirty water, and other liquids.
| Item: | 92925005 |
| Model: | FBSE-50K |
Ratings |
|
| HP | 1/2 hp |
| Frequency | 60 Hz |
| Phases | Not Applicable |
| Volts | Not Applicable |
| S.F. | 1.90 |
| Motor NEMA Frame Type | 56J C Face Thrd Shaft |
| Motor Enclosure | Not Applicable |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 5.23 “ |
| Product Weight | 18 lb |
| Pump Height | 9.86 “ |
| Pump Width | 7.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
✔ Authorized Franklin Electric Distributor ✔ Get Your Quote Today ✔ For Fast Service Call 303.699.7845 ✔ Repair Parts Are Available For This Model# FBSE-50K Pump end✔ Fast Shipping Available
