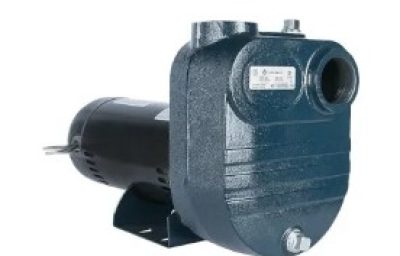

Franklin Electric FBSE-150K Close-Coupled Self-Priming Pump End | 92925015
Click to rate this post!
[Total: 0 Average: 0]
FBSE-150K Pump End features durable cast iron construction, making it long-lasting in various applications. Designed for use with a 56J C Face threaded shaft motor, this unit allows you to pair it with your own motor. The semi-open cast iron impeller is ideal for handling fertilizer, salt water, dirty water, and other liquids. Making the Model# 92925015 the right choice for irrigation, construction, and residential use. The cast iron volute includes tapped openings for priming, venting, and draining, ensuring reliable startup every time. The mechanical seal uses carbon/ceramic faces with FKM elastomers and 300 series stainless steel components for long-lasting performance. With a 1-1/4 inch threaded FNPT suction and discharge, this pump end installs easily in most standard plumbing configurations.
| Item: | 92925015 |
| Model: | FBSE-150K |
Ratings |
|
| HP | 1.5 hp |
| Frequency | 60 Hz |
| Phases | Not Applicable |
| Volts | Not Applicable |
| S.F. | 1.3 |
| Motor NEMA Frame Type | 56J C Face Thrd Shaft |
| Motor Enclosure | Not Applicable |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 5.44 “ |
| Product Weight | 18 lb |
| Pump Height | 11 “ |
| Pump Width | 8.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
