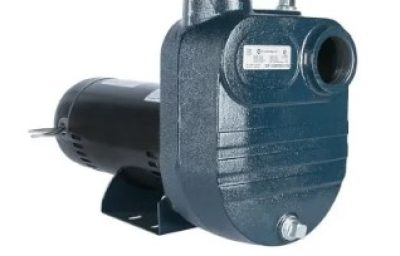

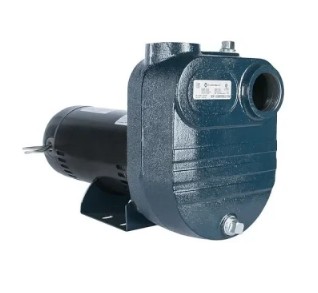

Franklin Electric FBSE-200K Close-Coupled Self-Priming Pump End | 92925020
Click to rate this post!
[Total: 0 Average: 0]
FBSE-200K Pump End is a 2 hp heavy-duty cast iron self-priming pump end built for demanding applications. Using a 56J C Face threaded shaft motor mount, this unit pairs with your own motor for maximum flexibility. The semi-open cast iron impeller handles fertilizer, salt water, and dirty water with ease making Model# 92925020 the right fit for construction sites, irrigation systems, and light industrial use.
.
.
| Item: | 92925020 |
| Model: | FBSE-200K |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Not Applicable |
| Volts | Not Applicable |
| S.F. | 1.2 |
| Motor NEMA Frame Type | 56J C Face Thrd Shaft |
| Motor Enclosure | Not Applicable |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 8.37 “ |
| Product Weight | 22 lb |
| Pump Height | 11.44 “ |
| Pump Width | 8.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
