Franklin Eletric FBSE-75-S Close-Coupled Self-Priming Pump | 92931007
Click to rate this post!
[Total: 0 Average: 0]

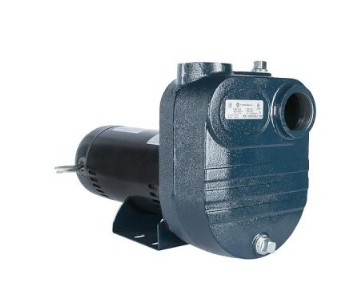

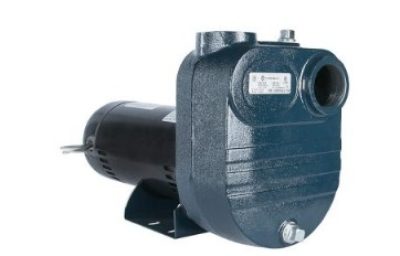

Franklin Electric FBSE-75-S Model Number 92931007 Close-Coupled Self-Priming Pump features durable cast iron construction, making it long-lasting in various applications. Thanks to its self-priming casing, the Franklin Electric FBSE-75-S is designed for simple operation and engineered to quickly respond once it has been filled with water. Because of its rugged cast iron volute with tapped openings for priming, venting, and draining, the FBSE-75-S is ideal for irrigation, construction, mining, and residential use.
| Item: | 92931007 |
| Model: | FBSE-75-S |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 115 VAC / 230 VAC |
| Amps at 230 Volts | 7.4 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Suction Diameter | 1.25 “ |
| Suction | Threaded – FNPT |
| Pump Length | 15.96 “ |
| Product Weight | 42 lb |
| Pump Height | 9.86 “ |
| Pump Width | 7.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
✓ Authorized Distributor ✓ Cast Iron Construction ✓ Fast Service 303.699.7845 ✓ Repair Parts Available Model# 92931007
