Franklin Electric FBSE-300-S Series Close-Coupled Self-Priming Pump | 92931020
Click to rate this post!
[Total: 0 Average: 0]

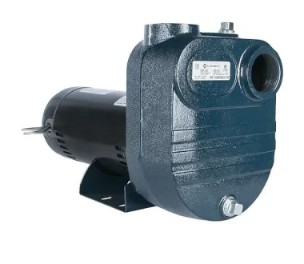

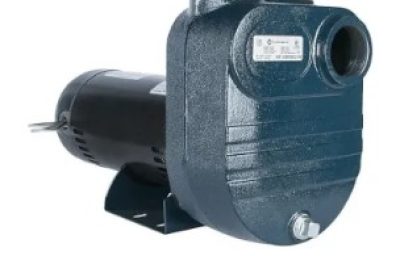

Franklin Electric FBSE-200-S Close-Coupled Self-Priming Pump features durable cast iron construction, making it long-lasting in various applications. Thanks to its self-priming casing, this pump is designed for simple operation and engineered to quickly respond once filled with water. The rugged cast iron volute includes tapped openings for priming, venting, and draining — making it ideal for irrigation, construction, mining, and residential use.
| Item: | 92931020 |
| Model: | FBSE-200-S |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 230 VAC |
| Amps at 230 Volts | 11.2 A |
| Motor Enclosure | ODP |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 19.16 “ |
| Product Weight | 60 lb |
| Pump Height | 11 “ |
| Pump Width | 8.5 “ |
Other |
|
| Warranty Standard Time | 12 Months |
✔ Authorized Franklin Electric Distributor ✔ Get Your Quote Today ✔ For Fast Service Call 303.699.7845 ✔ Repair Parts Are Available For This Model# FBSE-300-S ✔ Fast Shipping Available
