Franklin Electric FBSEF-300-SE Close-Coupled Self-Priming Pump | 92932030
Click to rate this post!
[Total: 0 Average: 0]

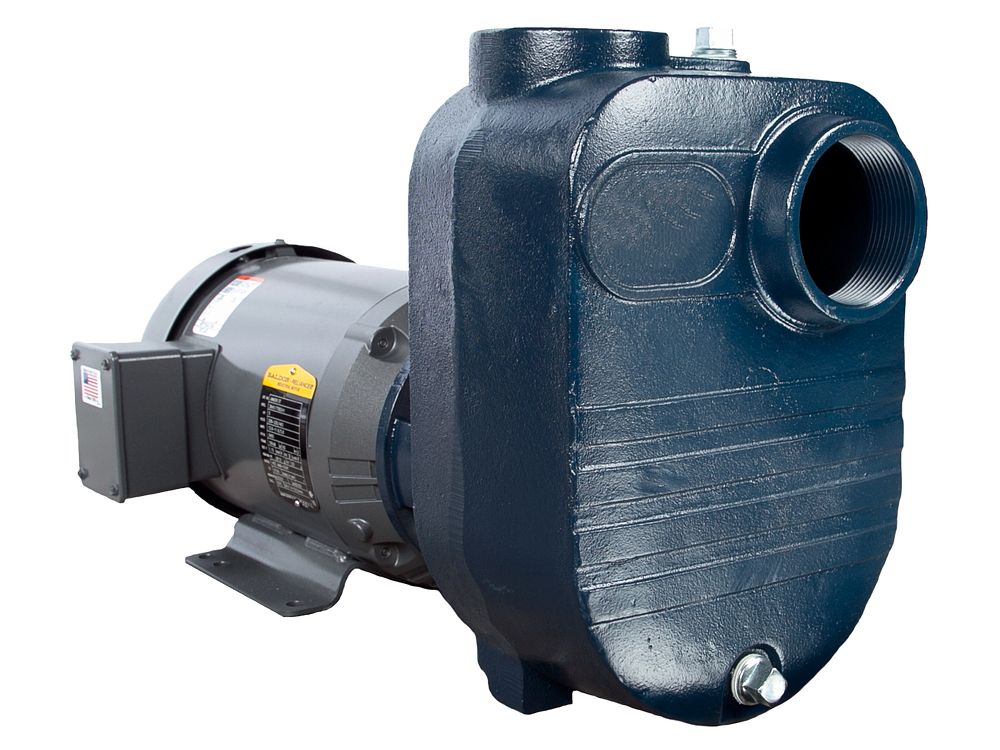

The Franklin Electric FBSEF-300-SE is a 3 HP close-coupled self-priming pump built for tough jobs. Capable of pumping up to 295 GPM at temperatures up to 212°F, it handles fertilizer, salt water, and dirty water with ease. The cast iron body and TEFC motor make it the reliable choice for Irrigation, Construction, Mining, Commercial, Municipal, Light Industrial, Residential, and industrial applications.
| Item: | 92932030 |
| Model: | FBSEF-300-SE |
| Ratings | |
| HP | 3 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 230 VAC |
| Amps at 230 Volts | 13.8 A |
| Motor Enclosure | TEFC |
| Liquid | |
| Maximum Fluid Temperature | 212 °F |
| Materials of Construction | |
| Pump Body Material | Cast Iron |
| Impeller | Semi-open |
| Impeller Material | Cast Iron |
| Seal Material | Carbon/Ceramic, FKM, 300 series S.S. |
| Seal | Mechanical Seal |
| Dimensions | |
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 19.81 “ |
| Product Weight | 71 lb |
| Pump Height | 11.4 “ |
| Pump Width | 9.99 “ |
| Other | |
| Warranty Standard Time | 12 Months |
