96175070302 – 70FMH2P-63
Click to rate this post!
[Total: 0 Average: 0]

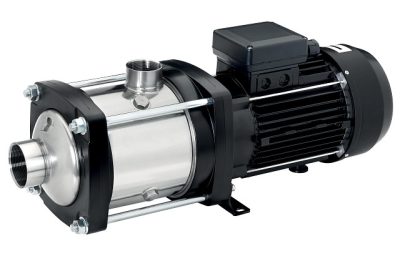

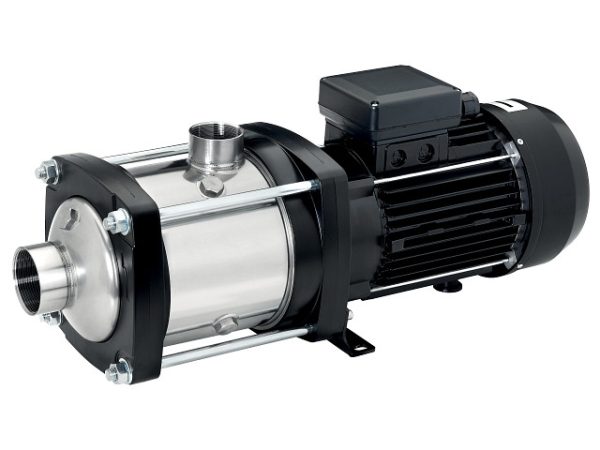

The EH Series, multistage booster pump is designed to meet your pressure boosting needs. The stainless steel construction offers high performance in a wide variety of applications. The EH Series is offered in five flow rates and different horsepower sizes in 1-phase or 3-phase to make sure you have the right pump to fit your application.
| Item: | 96175070302 |
| Model: | 70FMH2P-63 |
Ratings |
|
| HP | 4 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 220 VAC / 440 VAC |
| Motor | Surface |
| Efficiency [η] – Full Load (%) | 88.50 |
| Protection [IP] | IP55 |
| Motor Efficiency | 88.5 |
| S.F. | 1 |
| Amps at 230 Volts | 10.5 A |
| Service Factor – 50Hz | 1 |
| Flow | 70 gpm |
| Minimum Head – 60 Hz | 52 ft |
| Shut Off 60 Hz | 137 ft |
| Stages | 2 |
| Motor Enclosure | TEFC |
| Motor Cooling | Air |
| Temperature Rating | 248 °F |
Liquid |
|
| Maximum Fluid Temperature | 230 °F |
Materials of Construction |
|
| Pump Body Material | AISI 316 Stainless Steel |
| Impeller | Radial |
| Impeller Material | Stainless Steel AISI 304 |
| Check Valve | No |
| Discharge Material | Stainless Steel AISI 304 |
| Seal Material | Silicon Carbide / Silicon Carbide / EPDM / E2 |
| Stage Housing Diffuser Material | Stainless Steel 304 |
| Suction Material | Stainless Steel |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.5 “ |
| Suction Diameter | 2 “ |
| Suction | Threaded – FNPT |
| Pump Length | 22.32 “ |
| Product Weight | 60 lb |
| Product Weight with Pack | 45.08 lb |
| Carton Length | 25.79 “ |
| Carton Width | 10.71 “ |
| Carton Height | 10.83 “ |
| Pump Height | 9.09 “ |
| Pump Width | 7.4 “ |
Other |
|
| Warranty Standard Time | 24 Months |
| Applications | Small domestic and industrial systems / Domestic water supply Water distribution / pressure boosting Irrigation / Gardening / Sprinklers / Rainwater recovery Industrial plants / Wash down unit Cooling and chilling / Heating and conditioning / Air conditioning systems Pumping of clear non-loaded fluids |
