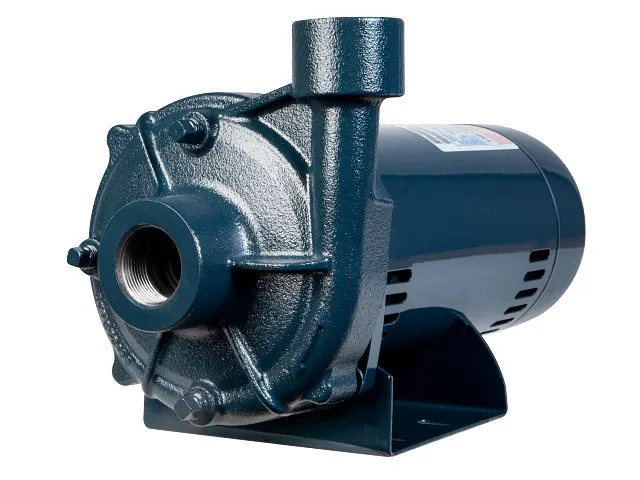

The Franklin Electric 9645218110–A1157NM-5T2P1 Centrifugal Pump from the AG Series is a close-coupled, electric motor-driven pump delivering flows from 65 to 900 GPM. Featuring all-iron construction, enclosed impellers, mechanical shaft seals, and replaceable stainless steel shaft sleeves, this 5 hp, single-phase pump has a back pull-out design for easy service. Standard JM shaft motors offer ODP or TEFC enclosures to meet diverse site requirements.
| Item: | 9645218110 |
| Model: | A1157NM-5T2P1 |
Ratings |
|
| HP | 5 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Volts | 230 VAC |
| Motor | Surface |
| Motor Insulation Classification | F |
| S.F. | 1.15 |
| Amps at 230 Volts | 19.5 A |
| Stages | 1 |
| Motor NEMA Frame Type | 184JM |
| Motor Enclosure | TEFC |
| Pump rpm – 60 Hz | 3600 |
| Temperature Rating | 212 °F |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Impeller Diameter | 6.13 “ |
| Suction Diameter | 1.5 “ |
| Suction | Threaded – FNPT |
| Pump Length | 21.87 “ |
| Product Weight | 139 lb |
| Pump Height | 9.5 “ |
| Pump Width | 13.74 “ |
Other |
|
| Warranty Standard Time | 12 Months |
| Applications | Pressure Boosting ƒƒWater Supply and Treatment ƒƒWash Down ƒƒWater Recirculation ƒƒ Irrigation |
