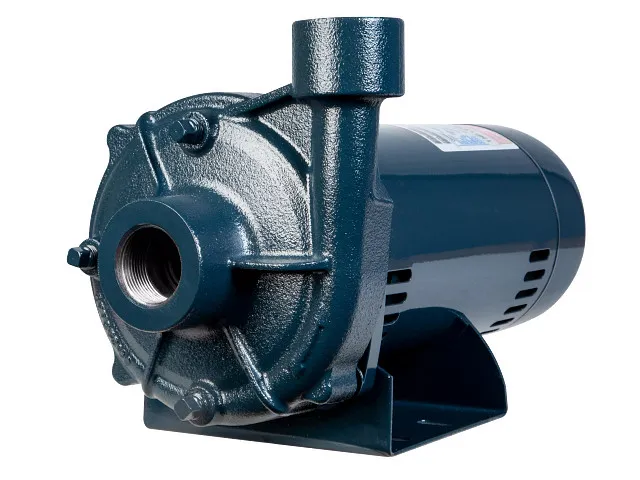

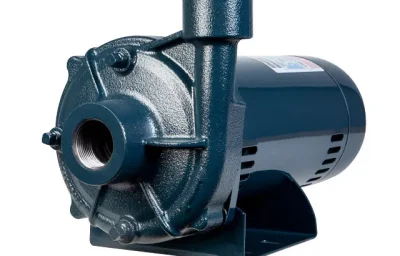

The Franklin Electric 9645218205–A1157NM-3T2P5 Centrifugal Pump from the AG Series is a close-coupled, electric motor-driven pump delivering flows from 65 to 900 GPM. Featuring all-iron construction, enclosed impellers, mechanical shaft seals, and replaceable stainless steel shaft sleeves, this 3 hp, three-phase pump has a back pull-out design for easy service. Standard JM shaft motors offer ODP or TEFC enclosures to meet diverse site requirements.
| Item: | 9645218205 |
| Model: | A1157NM-3T2P5 |
Ratings |
|
| HP | 3 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 575 VAC |
| Stages | 1 |
| Motor Enclosure | TEFC |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1 “ |
| Impeller Diameter | 5.25 “ |
| Suction Diameter | 1.5 “ |
| Suction | Threaded – FNPT |
| Pump Length | 18.61 “ |
| Product Weight | 97 lb |
| Pump Height | 8.5 “ |
| Pump Width | 11.48 “ |
Other |
|
| Warranty Standard Time | 12 Months |
