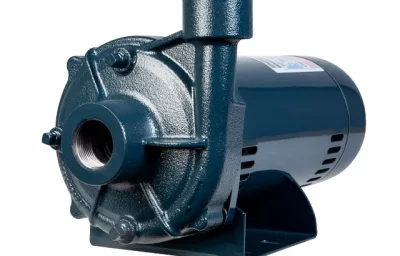

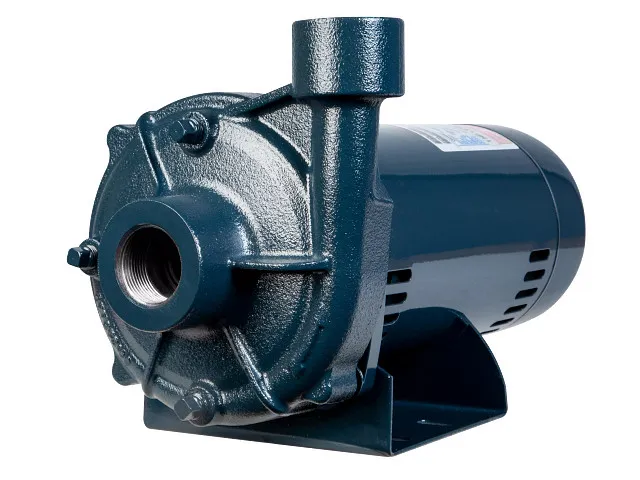

The Franklin Electric 9647218140–A2256NM-15T2P3 Centrifugal Pump from the AG Series is a close-coupled, electric motor-driven pump delivering flows from 65 to 900 GPM. Featuring all-iron construction, enclosed impellers, mechanical shaft seals, and replaceable stainless steel shaft sleeves, this 15 hp, three-phase pump has a back pull-out design for easy service. Standard JM shaft motors offer ODP or TEFC enclosures to meet diverse site requirements.
| Item: | 9647218140 |
| Model: | A2256NM-15T2P3 |
Ratings |
|
| HP | 15 hp |
| Frequency | 60 Hz |
| Phases | Three-Phase |
| Volts | 230 VAC / 460 VAC |
| Stages | 1 |
| Motor Enclosure | TEFC |
| Pump rpm – 60 Hz | 3600 |
Liquid |
|
| Maximum Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Body Material | Cast Iron |
| Impeller | Closed |
| Impeller Material | Stainless Steel |
| Seal | Mechanical Seal |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 2 “ |
| Impeller Diameter | 6.41 “ |
| Suction Diameter | 2.5 “ |
| Suction | Threaded – FNPT |
| Pump Length | 25.02 “ |
| Product Weight | 200 lb |
| Pump Height | 10.63 “ |
| Pump Width | 16.08 “ |
Other |
|
| Warranty Standard Time | 12 Months |
