BATTERY BACKUP SYSTEM
Click to rate this post!
[Total: 0 Average: 0]
APPLICATIONS
Provides emergency protection from water damage due to primary sump pump failure or power outages in residential areas such as basements and crawl spaces.
FEATURES & BENEFITS
- Automatic sump pump back-up system
- 12 Volt DC/1000 mA battery charger with alarm

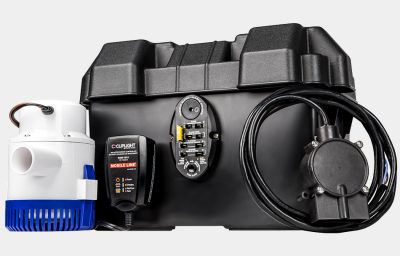

- System includes charger, pump, 1-1/2″ street elbow, 1-1/2″ checkvalve, 1-1/2″ coupling, battery box, 12 V DC pump control switch
- 2-Year Warranty
Owner’s Manual
Product Information
| Model | Item Number | UPC | Switch | Volts | Discharge | Amps | Cord Length | Gallons Per Hour at Height | Shut- Off | Basin Diameter | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0′ | 5′ | 10′ | ||||||||||
| RL-SPBS | 14942792 | 0 10121 15095 9 | Diaphragm | Pump: 12 V DC Charger: 120 V | 1-1/2″ | 14 | Charger: 6′ | 2500 | 1750 | 1200 | 18′ | 18″ or more |
Carton Specifications
| Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RL-SPBS | 15.25″ | 15.25″ | 13.5″ | 17 | 1.79 | 18 | 6 | 3 |
