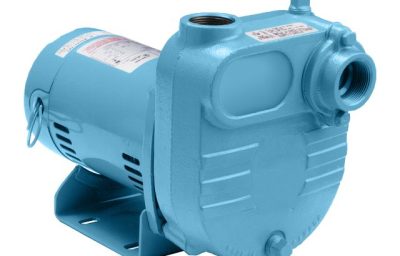

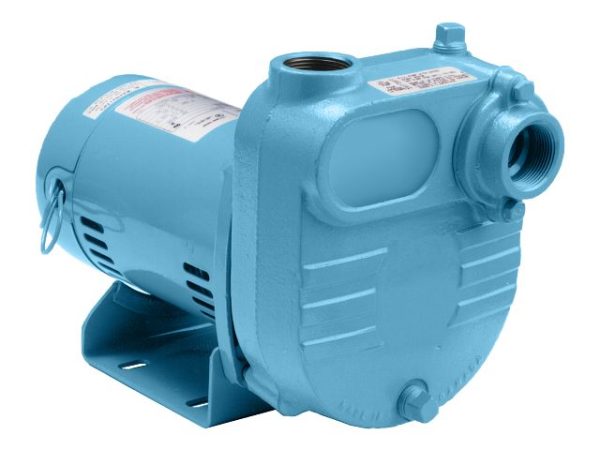

BE Series Surface Effluent Pump
Moving effluent and wastewater is a continuing challenge. Developed for dewatering, livestock watering, flood irrigation, and pumping septic tanks to a leach field, the BE Series surface effluent pump offers high efficiency and low maintenance to keep operations running smoothly. The high-quality built-in check valve helps to maintain pressure and offers an added layer of backup protection.
Features & Benefits
- Higher than NEMA service factor dual-compartment motor
- Self-priming motor
- Manual operation
- Built-in check valve
- 1/4″ solids handling
- 1-1/4″ (31.75 mm) NPT discharge
Overview
Effluent liquids and wastewater can be abrasive and corrosive. Flexible pump design options can help combat these issues. Available in 1/2 or 3/4 horsepower, the BE Series surface effluent pump is a manual effluent pump designed for continuous-duty operation. It features a rigid cast-iron body with a non-clog impeller to handle 1/4″ solids. With a maximum head height of 50′, the BE Series delivers flows up to 58 gpm.
Specifications
| BE-S50 | BE-S75 | |
| Capacity | 45 gpm @ 20′ | 58 gpm @ 20′ |
| Shut Off | 50′ (15.2 m) | 56′ (17.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) | 120 °F (49 °C) |
| Discharge | 1-1/4″ NPT (31.75 mm) | 1-1/4″ NPT (31.75 mm) |
| Impeller | Cast iron | Cast iron |
| Electrical | 115 V/230 V, 60 Hz, 8.4 A | 115 V/230 V, 60 Hz, 14.3 A |
| Operation | Manual | Manual |
Performance
| Head | BE-S50 GPM (LPM) | BE-S75 GPM (LPM) |
| 20′ | 45 (170.3) | 58 (219.6) |
| 25′ | 39 (147.6) | 53 (200.6) |
| 30′ | 31 (117.3) | 44 (166.6) |
| 35′ | 24 (90.8) | 36 (136.3) |
| 40′ | 16 (60.6) | 29 (109.8) |
| 45′ | 8 (30.3) | 18 (68.1) |
| 50′ | – | 10 (37.9) |
