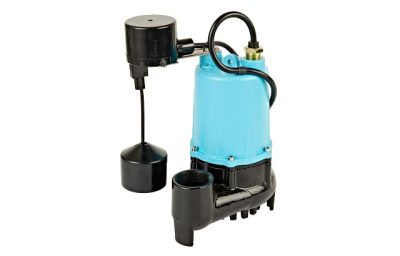

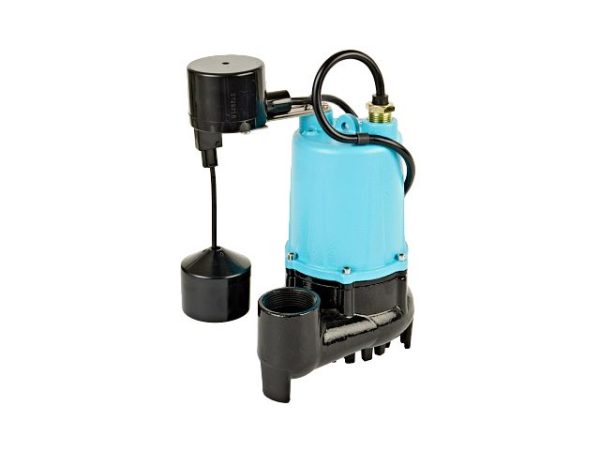

BSC33 Sump & Light Effluent Pump
The BSC33 Series sump or ultra-light effluent pump has the feature set for your new installation when you need a high performance cast iron pump that can also handle 3/8″ solids. Designed for entry level or builder grade solids handling sump or effluent applications such as new basements, crawlspaces, or septic systems.
Features & Benefits
- 1/3 horsepower PSC motor with all cast iron construction keeps strength and output high while reducing temperatures for long life
- Epoxy coated cast iron impeller
- Piggyback tethered mechanical float switch makes for easy diagnostics, adjust ability, and switch replacement
- Permanent intake teeth keep clogs to a minimum while maintaining the ability to pass 3/8″ solids
Overview
The BSC33 Series Sump and Light Effluent pump combines high performance and heavy duty construction features with light solids handling. The powerful 1/3 horsepower PSC motor moves water quickly to either protect your basement or operate your septic system. The simple and effective design is a great option for newly built basements and septic installations. The bottom volute intake teeth prevent debris from getting ingested and clogging the system while allowing 3/8″ solids to pass right through.
Specifications
| Capacity | 50 gpm @ 5′ |
| Shut Off | 25′ (7.6 m) |
| Max. Liquid Temp. | 95 °F (35 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Cast Iron |
| Electrical | 115 V, 60 Hz, 4.3 A |
| Operation | Automatic |
Performance
| Head | GPM (LPM) |
| 5′ | 50 (189) |
| 10′ | 41 (155) |
| 20′ | 16 (61) |
