CH&E 6500 Series Cast Iron 3″ Diaphragm Water Pump & Repair Parts

CH&E Diaphragm Pump and Magnum Power Products Mud Hog Diaphragm Pump

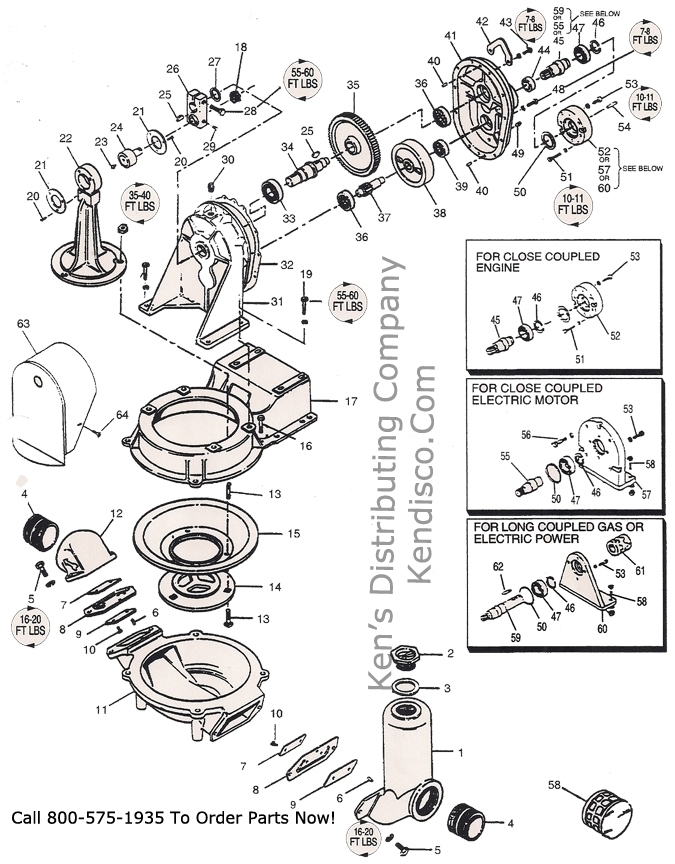

CHE Pump Parts Repair 17CH&E Diaphragm Water Pump 5500 Series Suction Connection & Spring Assembly P3309AY-C2

CH&E Diaphragm Water Pump 5500 Series Valve Weight P3313

CH&E Diaphragm Water Pump 5500 Series Flapper Weight P3313

CH&E Diaphragm Water Pump 5500 Series Flapper P3311N Neophrene

CH&E Diaphragm Water Pump 5500 Series Flapper P3311B Buna

CH&E Diaphragm Water Pump 5500 Series Valve Binder P3312

CH&E Diaphragm Water Pump 5500 Series Flapper Weight P3312

CH&E Diaphragm Water Pump 5500 Series Water Box & Spring Pin Assembly P3308AY-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Discharge Connection P3310-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Daiphragm Bottom P3306-A1 Aluminum

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726N Neophrene

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726B Buna

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726TPE TPE

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726R Rubber

CH&E Diaphragm Water Pump 5500 Series Diaphragm P2726V Viton

CH&E Diaphragm Water Pump 5500 Series Pump Frame P4771

CH&E Diaphragm Water Pump 5500 Series Lock Nut 3/4-16 LOK Nut

CH&E Diaphragm Water Pump 5500 Series Retaining Washer P3317

CH&E Diaphragm Water Pump 5500 Series Connecting Rod P3305

CH&E Diaphragm Water Pump 5500 Series Connecting Rod Bearing P5581

CH&E Diaphragm Water Pump 5500 Series Woodruff Key W70-807

CH&E Diaphragm Water Pump 5500 Series Crank Arm P5583

CH&E Diaphragm Water Pump 5500 Series Oil Seal W35-C12329CRW1

CH&E Diaphragm Water Pump 5500 Series Case P4850

CH&E Diaphragm Water Pump 5500 Series P4858

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6307

CH&E Diaphragm Water Pump 5500 Series Gear Shaft P4853

CH&E Diaphragm Water Pump 5500 Series 79 Tooth Gear P5058

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6304

CH&E Diaphragm Water Pump 5500 Series 11 Tooth Pinion P4852

CH&E Diaphragm Water Pump 5500 Series 85 Tooth Internal Gear P3417

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6302

CH&E Diaphragm Water Pump 5500 Series Dowel Pin 1/4 x 3/4″

CH&E Diaphragm Water Pump 5500 Series Cover P4851

CH&E Diaphragm Water Pump 5500 Series Needle Bearing W19-TB188

CH&E Diaphragm Water Pump 5500 Series Retaing Ring W63-5100-118

CH&E Diaphragm Water Pump 5500 Series Ball Bearing W16-6006LLU

CH&E Diaphragm Water Pump 5500 Series O-Ring P4859

CH&E Diaphragm Water Pump 5500 Series Crank Arm Guard P3691

CH&E Diaphragm Water Pump 5500 Series Crank Arm Guard P4953B

CH&E Diaphragm Water Pump 5500 Series Pinion P4854

CH&E Diaphragm Water Pump 5500 Series Engine Adapter P4856

CH&E Diaphragm Water Pump 5500 Series Key P5601

CH&E Diaphragm Water Pump 5500 Series Pinion P4855

CH&E Diaphragm Water Pump 5500 Series Pinion P5175

CH&E Diaphragm Water Pump 5500 Series Electric Motor Adapter P4857

CH&E Diaphragm Water Pump 5500 Series Pinion P4861

CH&E Diaphragm Water Pump 5500 Series Adapter P4857
CHE Pump Parts Repair 22
