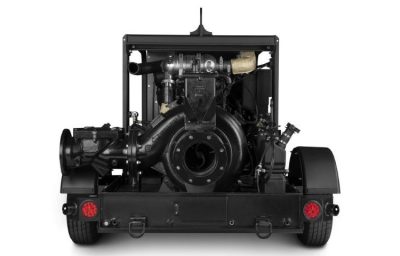

Diaphragm Dry Prime Trash Pump MTP8DZD 8″
Industrial-Grade Performance with the CH&E Generac Magnum Diaphragm Dry Prime Trash Pump MTP8DZD 8″
The CH&E Generac Magnum Diaphragm Dry Prime Trash Pump MTP8DZD 8″ is a heavy-duty pumping solution built for large-scale dewatering, mining, municipal, and industrial fluid transfer operations that demand maximum volume and dependable performance. Equipped with an 8-inch inlet and outlet, it moves high volumes of water loaded with solids, debris, and heavy trash efficiently, making it an essential piece of equipment for contractors and operators managing the most demanding job site pumping challenges.
Reliable Diaphragm Dry Prime Technology for Consistent Startup and Operation
The CH&E Generac Magnum Diaphragm Dry Prime Trash Pump MTP8DZD uses a diaphragm-driven dry prime system that automatically evacuates air from the pump casing and suction line before startup, eliminating the need for manual priming or water in the casing. This self-priming mechanism ensures fast, consistent startup in varying field conditions, reduces operator effort during setup, and keeps large-scale pumping operations running on schedule with minimal interruptions and maximum operational efficiency.
About the MTP8DZD 8″ Diaphragm Dry Prime Trash Pump
This diesel-powered trash pump features a high performance priming system and handles solids up to 3.375 in. (85.725 mm) in diameter. The final tier 4 engine meets EPA regulations for reduced emissions.
Powerful & Durable
- High efficiency pump end with best-in-class intake / discharge height of 30 in (0.76 m)
- High performance priming system
- Handles solids up to 3.38 in. (8.5 cm) in diameter
- Durable steel roll cage protects pump radiator and other components from damage
- Run-Dry system for continuous operations without need for external flush water or venting
Easy to Use
- Designed for easy service and maintenance
- LOFA CP750 digital controller with large, back-lit LCD display
- Automatic start/stop control for use with two-switch inputs
- Easy conversion to optional sound attenuated flip hood cabinet (dry prime models only)
- Optional QuickFit System for safer, cleaner, faster oil and filter change in less than 30 minutes
Additional Features
- Final Tier 4 Engine
- DOC + SCR Aftertreatment
- Built-in containment for all engine fluids
- Four-corner leveling for stability and complete fuel usage
- Pad-lockable battery box
- Flip tongue no-weld, removable front plate hitch assembly
- Optional sound attenuated flip hood cabinet
- Optional cutter impeller reduces clogs and ragging with minimal energy consumption
