FACGF Pump Dimensions
Click to rate this post!
[Total: 0 Average: 0]

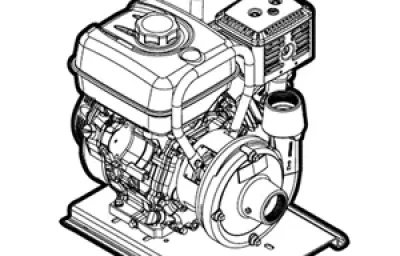

FACGF-5/5H, 8/8H
FACGF-23K
|
Model |
Suc. / Dis. (NPT) |
A |
B |
C |
D |
E |
F |
G |
H |
J Holes |
L |
W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FACGF-5 |
2 x 2 |
11.23 |
4.06 |
10.75 |
4.93 |
3.65 |
4.85 |
.063 |
17.18 |
.041 |
16.32 |
14.60 |
|
FACGF-5H |
11.23 |
4.06 |
10.75 |
4.93 |
3.65 |
4.85 |
.063 |
13.92 |
.041 |
16.35 |
15.60 |
|
|
FACGF-8 |
12.64 |
4.06 |
13.50 |
6.33 |
5.87 |
6.39 |
1.75 |
13.44 |
.041 |
23.72 |
20.26 |
|
|
FACGF-8H |
12.68 |
4.06 |
13.50 |
6.37 |
5.87 |
6.38 |
1.75 |
17.71 |
.041 |
19.30 |
17.43 |
