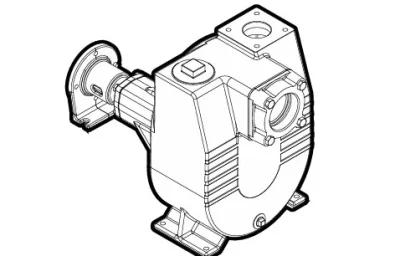

Ken’s Distributing Company provides a detailed parts breakdown for the Franklin Electric FMIH-40 hydraulic-driven self-priming pump. The page features a labeled diagram with part numbers to help you quickly identify the correct components. Use the request form on the page to get a quote for the specific parts you need.
| Fig No. | Part Description | FMIH-40 | Materials of Construction |
|---|---|---|---|
| 1 | Pump Case | 305455003 | Cast iron, ASTM-A48 CL30 |
| 2 | Impeller | 305455006 | Cast iron, ASTM-A48 CL30 |
| 3 | Seal Plate | 305454009 | Cast iron, ASTM-A48 CL30 |
| 5 | Shaft | 305454015 | 7M-212SST |
| 16 | Ball Bearing (2 req.)* | 305463036 | Misc. |
| 27 | Hydraulic Adapter | 305455017 | Cast iron, ASTM-A48 CL30 |
| 28 | Coupling | 305455016 | C1045 carbon steel |
| 29 | Set Screw (2 pack) | 305463198 | Zinc-plated steel |
| 35 | Shaft Key | 305454017 | 1018 CRS |
| 38 | Bearing Nut | 305463039 | 300 Series stainless steel |
| 39 | Bearing Lock Washer | 305463042 | Zinc-plated steel |
| 71 | Wear Plate | 305455009 | Cast iron, ASTM-A48 CL30 |
| 72 | Check Valve | 305454020 | Cast iron, ASTM-A48 CL30 |
| 73A | Top Weight, Check Valve | 305454023 | Cast iron, ASTM-A48 CL30 |
| 73B | Bottom Weight, Check Valve | 305454025 | Cast iron, ASTM-A48 CL30 |
| 79 | Transmission Head | 305454033 | Cast iron, ASTM-A48 CL30 |
| 81 | Seal Cover | 305454039 | Cast iron, ASTM-A48 CL30 |
| 90 | Mechanical Shaft Seal | 305463044 | Carbon/ceramic/FKM/316 stainless steel |
| 100A | Case Gasket | 305454042 | NA60 |
| 100B | Flapper Valve | 305454045 | Neoprene |
| 500A | Pipe Plug, 3″ | 305463197 | CAD-plated steel |
| 500B | Pipe Plug, 3/4″ (3 pack) | 305463050 | CAD-plated steel |
| Not Shown | Pipe Plug, 4″ | 305463076 | CAD-plated steel |
| 510 | Hex Bolt, Impeller | 305463078 | 300 Series stainless steel |
| 520 | Washer, Impeller | 305455015 | 1018 CRS |
| 530A | Wear Plate Bolts (6 pack) | 305463079 | Zinc-plated steel |
| 530B | Flapper Bolt | 305463081 | 300 Series stainless steel |
| 530C | Hex Nuts (6 pack) | 305463059 | Zinc-plated steel |
| 530E | Nut, Flapper | 305463083 | Zinc-plated steel |
| 530F | Hex Cap Screw, Valve (4 pack) | 305463086 | Zinc-plated steel |
| 530G | Washer, Bearing Cover (6 pack) | 305463067 | Zinc-plated steel |
| 530H | Bolt, Bearing Cover (4 pack) | 305463069 | Zinc-plated steel |
| 531 | Threaded Stud, Transmission (6 pack) | 305463199 | Zinc-plated steel |
| 532 | Set Screw (2 pack) | 305463075 | Zinc-plated steel |
| 532 | Set Screw | 305463075 | Zinc-plated steel |
