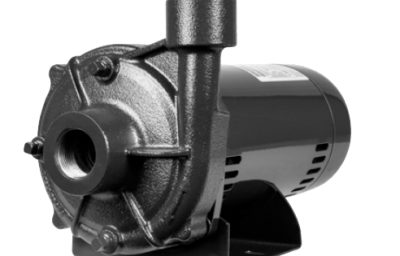

Franklin Electric Centrifugal Close Coupled DR Series
Click to rate this post!
[Total: 1 Average: 5]
FEATURES
- Back pull-out design provides access to internal parts without disturbing the plumbing
- Robust cast iron volute standard; stainless steel alternate available for DR1 Series
- Volute discharge can be rotated in 90° increments with top vertical standard from the factory
- Multiple 1/4″ NPT drain/pressure ports enable winterizing no matter the volute orientation
- Enclosed impeller design for increased efficiencies; thermoplastic and stainless steel options
- Multiple mechanical seal construction materials to accommodate handling various fluids
- Every pump unit factory wet tested to insure customer satisfaction
- Suitable for horizontal or vertical (motor end up) installation
- NEMA standard motor options include:
- 48Y square flange, 1/2″ threaded shaft, ODP
- 56C round flange, 5/8″ keyed shaft with coupling, ODP & TEFC
- 56J round flange, 7/16″ threaded shaft, ODP
- Pump end kits available for 56C & 56J motor construction
- Rotation: right hand; clockwise when viewed from motor end
- Maximum fluid handling temperature 180 °F (82 °C)
APPLICATIONS
- Water circulation
- Booster service
- Liquid transfer
- Spraying systems
- Jockey pump service
- General purpose pumping
| Series | HP Range | Suction | Discharge | Max Flow | Max Head |
|---|---|---|---|---|---|
| DR1 | 1/2 – 1 | 1-1/4″ NPT | 1″ NPT | 65 GPM | 115′ |
| DR2 | 1 – 2 | 1-1/2″ NPT | 1-1/4″ NPT | 90 GPM | 130′ |
