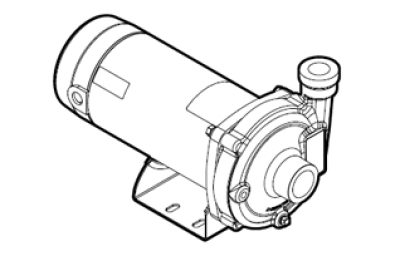

Franklin Electric Surface Pump Centrifugal Specialty SS
Click to rate this post!
[Total: 0 Average: 0]
FEATURES
- Glass filled thermoplastic impeller for increased efficiency and dependable high temperature operation.
- Back pull-out design provides access to internal parts without disturbing the plumbing.
- Mechanical shaft seal etnsures a leakproof fit and continuous water lubrication.
- Square flange open drip-proof motor for easy service and reliability.
- Chemical resistant thermoplastic impeller.
- FKM mechanical shaft seal for added chemical resistance.304SS case and seal plate
SPECIFICATIONS
- Capacities: to 60 gpm
- Heads: to 120 feet
- Working Pressure: 120 psi max
- Temperature: maximum 140oF
- Rotation: clockwise viewed from motor end
- Pipe Connections: NPT
APPLICATIONS
- Water Circulation
- Booster Service
- Liquid Transfer
- Spraying System
- Jockey Pump
- General Service
|
Discharge |
Suction |
|---|---|
| 1″ | 1-1/4″ |
SS Series Exploded Parts
SS Series Materials and Parts
| Fig. No. | Part Description | Part No. | Materials of Construction |
|---|---|---|---|
| 1 | Volute w/plugs | 305716901 | 300 Series Stainless Steel |
| 2 | Impeller Kit (1/2 hp) | 305716902 | Various |
| 2 | Impeller Kit (3/4 hp) | 305716903 | Various |
| 2 | Impeller Kit (1 hp) | 305716904 | Various |
| 2 | Impeller Kit (1-1/2 hp) | 305716905 | Various |
| 3 | Seal Plate | 305716906 | 300 Series Stainless Steel |
| 4 | Base Kit | 305373901 | C.R.S. |
| 5 | Fastener Kit | 305716907 | CAD Plated |
| 6 | Motor | See Below | |
| HP | Single-Phase | Three-Phase |
|---|---|---|
| 1/2 | 305374915 | 305374919 |
| 3/4 | 305374916 | 305374920 |
| 1 | 305374917 | 305374921 |
| 1.5 | 305374918 | 305374922 |
SS Series Ordering Information
| 1 x 1-1/4 SS SERIES CENTRIFUGAL PUMP UNITS | ||||||||
|---|---|---|---|---|---|---|---|---|
| Series | Suction x Discharge | HP | Single-Phase | Three-Phase – 208-230/460 Volt | ||||
| Model No. | Order No. | Wt. | Model No. | Order No. | Wt. | |||
| 1 x 1-1/4 SS | 1-1/4 x 1 | 1/2 | 5FPDDS1-S | 93178056 | 25 | 5FPDDS1-T | 93178098 | 25 |
| 3/4 | 7FPDDS1-S | 93178064 | 29 | 7FPDDS1-T | 93178106 | 29 | ||
| 1 | 1FPDDS1-S | 93178072 | 31 | 1FPDDS1-T | 93178114 | 31 | ||
| 1-1/2 | 15FPDDS1-S | 93178080 | 36 | 15FPDDS1-T | 93178122 | 36 | ||
| 1 x 1-1/4 SS SERIES CENTRIFUGAL PUMP END KITS for 3500 R.P.M. – O.D.P. MOTORS | ||||||||
|---|---|---|---|---|---|---|---|---|
| Series | Suction x Discharge | HP Range | Phase | Motor Frame Size | Max. Imp. Diameter | PUMP END KIT | ||
| Model No. | Order No. | Wt. | ||||||
| 1 x 1-1/4 SS | 1-1/4 x 1 | 1/2 – 1-1/2 | 1 or 3 | 56Z | 5.315” | DDS1-K1 | 93174137R378 | 12 |
SS Series Dimensions
| HP | Suc. | Disc. | Phase | L | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 1-1/4 NPT | 1 NPT | 1 | 16.33 | 2.23 | 5.29 | 4.52 | 3.45 | 4.63 | 8.72 | 5.60 |
| 3/4 | 16.33 | ||||||||||
| 1 | 16.33 | ||||||||||
| 1-1/2 | 16.33 | ||||||||||
| 1/2 | 3 | 14.88 | 6.50 | ||||||||
| 3/4 | 14.88 | ||||||||||
| 1 | 14.88 | ||||||||||
| 1-1/2 | 14.88 |
SS Series Dimensional Drawings
SS Series | Centrifugal | Surface Pump | Ag/Industrial/Municipal | Franklin Electric | Pump Replacement Parts | SS Series Repair Parts | PSS Series Order Information | PSS Series Dimensions | SS Series Exploded Parts View | Ken’s Distributing Company | SS Series monarch Industries Pump | SS Series Monarch Pump | 5FPDDS1-S | 7FPDDS1-S | 1FPDDS1-S |15FPDDS1-S | 5FPDDS1-T | 7FPDDS1-T | 1FPDDS1-T | 15FPDDS1-T
SS Series Performance Curve
