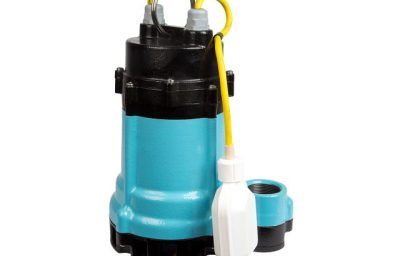

HT-6EN High-Temp Series Effluent Pump
Click to rate this post!
[Total: 0 Average: 0]
Make sure you’re using a pump that’s up to the task for the long haul. Rated for continuous duty use in dewatering, water transfer, and effluent wastewater removal applications, the HT-6EN Series high-temp effluent pump is built to tackle effluent wastewater challenges and handle liquids up to 200 °F (93 °C).
Features & Benefits
- 1/3 hp Permanent Split Capacitor (PSC) motor
- Designed for continuous duty
- Handles liquids up to 200 °F (93 °C)
- Heavy-duty epoxy-coated cast iron housing
- 3/4″ solids handling
- Automatic operation with integral mechanical float switch
Overview
The HT-6EN Series high-temp effluent pump is specifically designed to handle high-temperature effluent wastewater removal in applications such as boiler blowdown, sump pit, or transformer vaults. Backed by an energy-efficient 1/3 horsepower motor with thermal overload protection, the HT-6EN high-temp effluent pump operates with an automatic switch and comes with a 15′ power cord.
Specifications
| Capacity | 59 gpm @ 5′ |
| Shut Off | 25′ (7.6 m) |
| Max. Liquid Temp. | 200 °F (93 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Thermoplastic |
| Electrical | 115 V, 60 Hz, 6.5 A |
| Operation | Automatic |
Performance
| Head | GPM (LPM) |
| 5′ | 59 (223.3) |
| 10′ | 54 (204.4) |
| 15′ | 45 (170.3) |
| 20′ | 26 (98.4) |
Order Information

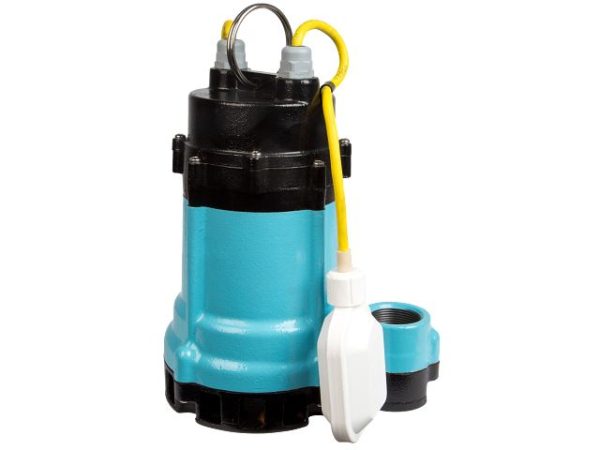

HT-6EN High-Temp Series Effluent Pump
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 506602 | HT-6EN-CIA-FS | 115 VAC | Integral Mechanical Float | 15 ft | 1.5 “ |
