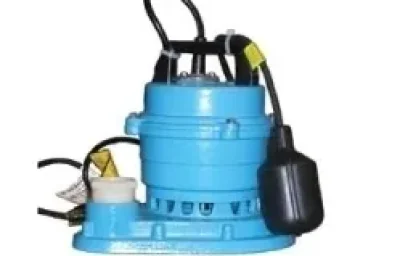

Monarch ESP33 Series Submersible Sump Pump
Monarch ESP33 Series: Reliable Submersible Sump & Effluent Pumping
The Monarch ESP33 Series Submersible Sump Pump is engineered for durability and high performance in residential and light commercial applications. Designed to handle both sump drainage and effluent transfer, this versatile 1/3 HP pump is capable of passing 1/2″ spherical solids, making it a superior choice over standard clear-water sump pumps.
At the core of the ESP33 Series is a continuous-duty, “oil-free” motor housed in rugged cast iron (standard models) or corrosion-resistant thermoplastic (“P” models). This design effectively dissipates heat, extending the life of the motor even under heavy usage. With a 2-year warranty and CSA/UL approvals, the ESP33 provides peace of mind for basement protection and septic effluent management.
Key Features and Construction
- Robust Motor Design: Features a 115-volt, 5.6 amp, thermal overload-protected motor. The “oil-free” design is environmentally safe and built for continuous duty operation.
- Heavy-Duty Construction: Standard models feature a cast iron motor housing and pump casing for maximum heat dissipation and durability. “P” models utilize a high-quality thermoplastic motor cover and casing for corrosion resistance.
- Superior Components: Equipped with a stainless steel heat-treated shaft, permanently lubricated upper and lower ball bearings, and a permanently lubricated double lip seal to prevent leaks.
- Efficient Impeller: The 5-vane reinforced polypropylene impeller includes a brass insert for stability and is designed to handle 1/2″ spherical solids without clogging.
- Versatile Discharge: Comes with a standard 1 ½” NPT discharge. A reducer bushing is included to accommodate 1 ¼” discharge piping if required.
- Switch Options: Available with automatic piggy-back mechanical float switches, vertical float switches, or in manual operation modes to suit your specific basin configuration.
Common Applications
- Basement Sump Systems: Keeping basements dry and preventing flooding.
- Effluent Transfer: Moving septic tank effluent (STEP systems).
- Dewatering: General water removal where small solids may be present.
Technical Specifications & Performance
The following tables detail the performance capabilities and specific model configurations for the ESP33 Series.
Performance Chart
| Model No. | Total Head in Feet | Shut-Off Head (ft.) | |||
|---|---|---|---|---|---|
| 5 | 10 | 15 | 20 | ||
| Capacities in U.S. GPM | |||||
| ESP33 | 44 | 33 | 13 | 0 | 17.5 |
Submersible Sump/Effluent Pumps – 1 1/2″ – 1 1/4″ Discharge
| Model No. | Order No. | SFA | HP | Ship Wt. (lbs.) | Description |
|---|---|---|---|---|---|
| ESP33AM | 620186 | 5.6 | 1/3 | 20 | Automatic, with piggy-back float switch and 10 ft. cord. Cast iron motor cover. |
| ESP33AM-P | 620185 | 5.6 | 1/3 | 19 | Automatic, with piggy-back float switch and 10 ft. cord. Thermoplastic motor cover. |
| ESP33AV | 620120 | 5.6 | 1/3 | 20 | Automatic, with vertical float switch and 10 ft. cord. |
| ESP33M | 620089 | 5.6 | 1/3 | 17 | Manual, with 10 ft. cord. |
| ESP33AV-P | 620121 | 5.6 | 1/3 | 19 | Automatic, with vertical float switch and 10 ft. cord. Thermoplastic motor cover. |
Dimensions
- Overall Width: 10.57 inches (measured from outer edge of float to discharge)
- Pump Height: 8.93 inches
- Base Width: Approximately 6 inches (based on diagram scale)
- Distance from Center to Discharge: 4.31 inches
