Monarch ESP33S-FP Series Sump & Tank Package
Monarch ESP33S-FP Series: The All-in-One Sump & Tank Solution

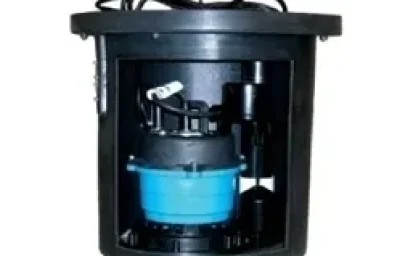

The Monarch ESP33S-FP Series Sump & Tank Package offers a convenient, economical solution for water removal in locations where traditional gravity drain lines are unavailable. This pre-packaged, above-floor system is engineered for quick and simple installation, making it the perfect choice for adding plumbing fixtures to basements, garages, or utility rooms without the need for expensive excavation.
At the heart of this system is the powerful 1/3 HP ESP33AV-P submersible pump. Featuring an oil-free motor design and integral float control, this unit delivers reliable, automatic operation. The system is housed in a heavy-duty 5.5-gallon polypropylene tank that is built to resist corrosion and leaks. Whether you are installing a laundry tray, a bar sink, or need a general-purpose drain pump, the ESP33S-FP delivers professional-grade performance in a compact package.
Key Features and Components
- Complete Package: Includes the pump, tank, and all necessary stainless steel hardware for a ready-to-install solution.
- Powerful Pumping: Equipped with the ESP33AV-P 1/3 HP submersible pump, featuring an oil-free motor for environmentally safe operation.
- Automatic Operation: The integral vertical float switch ensures the pump activates automatically as water levels rise and deactivates once drained.
- Durable Tank: The robust 5.5-gallon polypropylene basin is designed to withstand daily use and harsh chemical detergents typically found in laundry applications.
- Motor Protection: The 115-volt motor includes automatic reset thermal overload protection to prevent overheating and extend the pump’s lifespan.
- Solids Handling: Capable of handling solids up to 1/2 inch in diameter, preventing clogs from lint or small debris.
Common Applications
- Laundry Trays: Efficiently pumps greywater from basement washing machines and utility sinks up to the main sewer line.
- Wet Bars: Allows for the installation of bar sinks in areas without sub-floor drainage.
- Dehumidifiers & AC Units: Ideal for collecting and removing condensate in finished basements.
- Utility Sinks: Perfect for workshops or garages requiring drainage solutions.
Technical Specifications & Performance
The following tables detail the performance capabilities and system specifications for the ESP33S-FP package.
Performance Chart
| PERFORMANCE CHART | ||||
|---|---|---|---|---|
| Model No. | Total Head in Feet | Shut-Off Head (ft.) | ||
| 5 | 10 | 15 | ||
| Capacities in U.S. GPM | ||||
| ESP33 | 44 | 33 | 13 | 17.5 |
ESP33-FP Series Pump and Tank System – Submersible Effluent
| Model No. | Order No. | HP | Solids Handling | Ship Wt. (lbs.) | Description |
|---|---|---|---|---|---|
| ESP33S-FP | 620098 | 1/3 | 1/2″ | 32 | Prepacked Sump Pump and Tank System |
Dimensions
- Total Height: 13.0 inches
- Tank Height (excluding lid lip): 11.0 inches (approximate based on diagram)
- Top Width (Lid): 15.375 inches
- Tank Base Width: 12.25 inches
- Inlet/Discharge Locations: See technical diagram for specific center-line measurements (Top view shows multiple access points).
