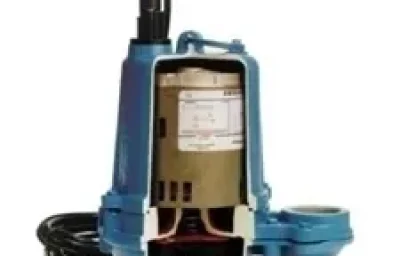

Monarch WS Series Submersible Effluent Pumps
The Monarch WS Series represents the gold standard in residential and light commercial wastewater management. Designed for versatility and extreme durability, this comprehensive line of submersible effluent pumps ranges from 1/3 HP to 1 HP, offering solutions for standard lift requirements as well as high-pressure, high-head applications.
Whether you are installing a new residential septic system, managing a STEP (Septic Tank Effluent Pumping) system, or requiring robust dewatering for light commercial projects, the WS Series delivers. Built with Class 30 Cast Iron housings and oil-filled motors, these pumps are engineered to run cooler, last longer, and resist the corrosive nature of effluent environments.
Engineered for Non-Clog Performance
A common failure point in effluent pumps is clogging. The WS Series addresses this with advanced impeller designs. The WS30 models utilize a 3-vane impeller, while the heavy-duty WS50, WS50H, and WS100H models feature a specialized 2-vane Cast Iron impeller. These designs allow for the efficient passage of solids (ranging from 11/16″ to 3/4″ depending on the model), ensuring smooth operation without the frequent maintenance associated with plastic impellers.
Series Features
- Rugged Construction: Motor and pump housing crafted from Cast Iron Class 30 for superior heat dissipation and durability.
- High-Torque Motors: Capacitor start motors designed for high starting torque, housed in an oil-filled chamber for continuous lubrication and thermal protection.
- Versatile Range:
- WS30 (1/3 HP): Ideal for general effluent and sump applications (Max Head: 28′).
- WS50 (1/2 HP): Enhanced power for consistent residential use (Max Head: 42′).
- WS50H (1/2 HP High Head): Designed for systems requiring higher lift (Max Head: 63′).
- WS100H (1 HP High Head): Maximum power for demanding commercial or deep-set applications (Max Head: 90′).
- Superior Sealing: Equipped with Mechanical Carbon/Ceramic Type 6, 5/8″ rotary seals to prevent water intrusion.
- Corrosion Resistance: 416 Stainless steel motor shafts and stainless steel fasteners throughout.
- Cord Protection: Power cords are sealed directly at the motor housing to prevent moisture wicking.
Applications
The Monarch WS Series is the preferred choice for professionals handling:
- Residential and Commercial Septic Tanks
- Low-Pressure Pipe (LPP) Systems
- Mound Systems
- Basement Sump and Sewage Ejection
- Liquid Effluent Transfer
Technical Specifications
Dimensions (Inches)
| Model | A | B (Height) | C | D | E | F | G (Width) |
|---|---|---|---|---|---|---|---|
| WS30 | 1.75 | 11.25 | 3.75 | 1 | 12.25 | 4.86 | 9.38 |
| WS50 | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |
| WS50H | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |
| WS100H | 1.75 | 13.75 | 3.75 | 1 | 12.25 | 4.68 | 9.38 |
*Dimensions measured in inches.
Performance Chart (Capacities in U.S. GPM)
| Model | RPM | Shut-Off Head (ft.) | 5 ft | 10 ft | 15 ft | 20 ft | 25 ft | 30 ft | 40 ft | 50 ft | 60 ft | 70 ft | 80 ft |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WS30 | 1750 | 28 | 105 | 90 | 70 | 45 | 15 | – | – | – | – | – | – |
| WS50 | 3450 | 42 | 105 | 92 | 80 | 64 | 50 | – | – | – | – | – | – |
| WS50H | 3450 | 63 | – | 115 | 98 | 78 | 57 | 30 | 0 | – | – | – | – |
| WS100H | 3450 | 90 | – | 150 | 140 | 128 | 115 | 97 | 76 | 53 | 27 | 0 | – |
Model Specifications
| Model No. | Order No. | HP | Volts | SFA (Amps) | Phase | Solids Handling | Ship Wt. (lbs.) | Switch | Cord Length |
|---|---|---|---|---|---|---|---|---|---|
| SUBMERSIBLE EFFLUENT PUMPS – AUTOMATIC AND MANUAL | |||||||||
| WS30M | 620010 | 1/3 | 115 V | 10.4 | 1 | 11/16″ | 51 | Manual | 20′ |
| WS30AM | 620000 | 1/3 | 115 V | 10.4 | 1 | 11/16″ | 53 | Automatic | 20′ |
| WS50M-20 | 620231 | 1/2 | 115 V | 11.6 | 1 | 3/4″ | 55 | Manual | 20′ |
| WS50AM-20 | 620233 | 1/2 | 115 V | 11.6 | 1 | 3/4″ | 57 | Automatic | 20′ |
| WS50M-12-20 | 620251 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50AM-12-20 | 620253 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 58 | Automatic | 20′ |
| HIGH HEAD SUBMERSIBLE EFFLUENT PUMPS | |||||||||
| WS50HM-20 | 620218 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-20 | 620219 | 1/2 | 115 V | 15.0 | 1 | 3/4″ | 58 | Automatic | 20′ |
| WS50HM-12-20 | 620220 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 56 | Manual | 20′ |
| WS50HAM-12-20 | 620221 | 1/2 | 208-230V | 9.7 | 1 | 3/4″ | 58 | Automatic | 20′ |
| WS100HM-12-20 | 620222 | 1 | 208-230V | 13.6 | 1 | 3/4″ | 57 | Manual | 20′ |
| WS100HAM-12-20 | 620223 | 1 | 208-230V | 13.6 | 1 | 3/4″ | 59 | Automatic | 20′ |
| WS100HM-32 | 620207 | 1 | 208-230V | 6.2 | 3 | 3/4″ | 62 | Manual | 30′ |
| WS100HM-34 | 620206 | 1 | 460 V | 3.1 | 3 | 3/4″ | 62 | Manual | 30′ |

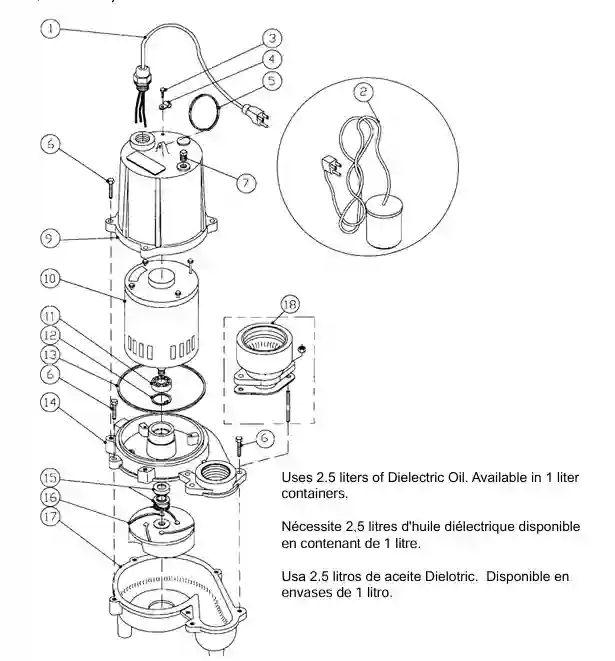

Repair Parts List (WS50/WS100 Series)
| Ref. # | Code # | a | b | c | d | e | f | g | h | i | j | Description |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1* | 225076 | 1 | 115V, 20 ft. (SJOW-A 14/3) | |||||||||
| 1* | 225108 | 1 | 1 | 1 | 115V, 30 ft. (SJOW-A 14/3) | |||||||
| 1* | 225064 | 1 | 1 | 1 | 230V, 20 ft. (SJOW-A 16/3) | |||||||
| 2 | 639606 | 1 | Float Switch – 115V, 20 ft. | |||||||||
| 3 | 144432 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Screw #8 – 32 UNC x 3/8″ |
| 4 | 116842 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Clamp |
| 5 | 246316 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Split Coil Ring, 2.75 O.D. SST |
| 6 | 225820 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | Bolt 5/16″ UNC x 1-1/4″ SST |
| 7 | 186220 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Plug 1/4″ NPT Brass |
| 8 | 620581 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | Insulating Oil (Liters) |
| 9 | 493543 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Housing |
| 10 | 238251 | 1 | Motor 1/2HP, 115/208-230V, 1PH | |||||||||
| 11* | 110110 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | Bearing (included with #10) |
| 12 | 137911 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Retaining Ring |
| 13* | 198994 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | O-Ring, Square |
| 14 | 493552 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Adapter |
| 15* | 240160 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Mechanical Seal, 5/8″ I.D. |
| 16* | 493229 | 1 | 1 | 1 | 1 | Impeller (WS50 Series) | ||||||
| 16* | 493230 | Impeller (WS100 Series) | ||||||||||
| 17 | 493553 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | Casing |
Frequently Asked Questions
What is the difference between WS30, WS50, and WS100?
The primary difference is the Horsepower (HP) and Head capacity. WS30 is 1/3 HP (28′ max head), WS50 is 1/2 HP (42′ max head), and WS100H is 1 HP (90′ max head). Additionally, the WS50/100 series uses a 2-vane impeller, while the WS30 uses a 3-vane impeller.
Are these pumps automatic?
The series offers both Manual and Automatic options. Models ending in “AM” (e.g., WS50AM) come with a float switch for automatic operation. Models ending in “M” (e.g., WS50M) are manual and require a control panel or external switch.
What does “Non-Clog” mean for these pumps?
These pumps feature impellers designed to pass semi-solids without jamming. The WS30 handles up to 11/16″ solids, while the WS50/100 series handles up to 3/4″ solids, making them superior to standard sump pumps for effluent applications.
Can I use 3-phase power with these pumps?
Yes, specific high-head models (like the WS100HM-32 and WS100HM-34) are available in 3-phase configurations (208-230V or 460V). Standard models are single-phase.
