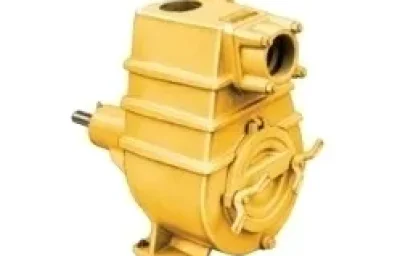

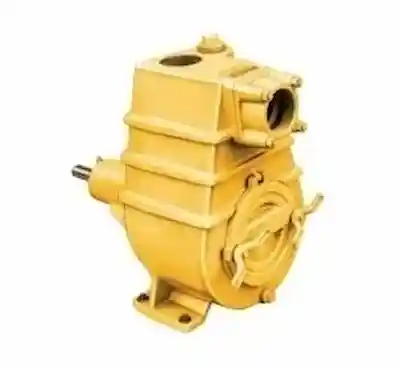

Monarch Industries TT-60 Self Priming Trash Pump
The Monarch Industries TT-60 Self Priming Trash Pump represents the pinnacle of durability and efficiency in the TT Series. Designed for rigorous industrial, commercial, and marine applications, this frame-mount pump is engineered to handle liquids containing solids where reliability is non-negotiable.
Constructed from heavy-duty cast gray iron, the TT-60 is built to withstand harsh environments while delivering superior hydraulic performance. Whether you are managing sewage, dewatering construction sites, or handling agricultural fluids, the TT Series ensures consistent operation with minimal downtime.
This product page also serves as a comprehensive catalog for Monarch TT-60 repair parts, allowing you to maintain your equipment with genuine OEM components.
Key Features and Benefits
The Monarch TT Series is packed with design features that prioritize longevity and ease of maintenance:
- Robust Casing: Made from cast gray iron with extra reinforcing ribs. This design provides added strength and a large capacity for faster priming cycles.
- Heavy-Duty Bearings: Equipped with two heavy-duty sealed ball bearings to support the shaft and reduce friction during high-RPM operation.
- Easy Clean-Out: Features a specialized clean-out cover secured by wing nuts. This allows for quick removal without wrenches, granting immediate access for inspection or cleaning.
- Built-in Check Valve: The threaded NPT suction inlet includes a built-in check valve that prevents syphoning and facilitates rapid re-priming.
- Superior Sealing: Utilizes a high-quality mechanical seal composed of Viton, stainless steel, and carbon-ceramic materials for maximum chemical and heat resistance.
- Durable Impeller: The enclosed cast gray iron, two-vane type impeller is capable of handling spherical solids. Its unique design eliminates the need for a wear plate while boosting efficiency.
- Replaceable Wear Ring: Maintains pump efficiency over time by allowing for easy replacement of worn surfaces.
- Stainless Steel Shaft: Features a keyed stainless steel shaft to resist corrosion and ensure a secure fit with the impeller.
Common Applications
- Industrial: Waste water treatment and transfer.
- Construction: Dewatering and trash handling.
- Agricultural: Irrigation and liquid fertilizer transfer.
- Marine: Bilge pumping and wash down.
- Commercial: Sump and sewage management.
Technical Specifications & Repair Parts

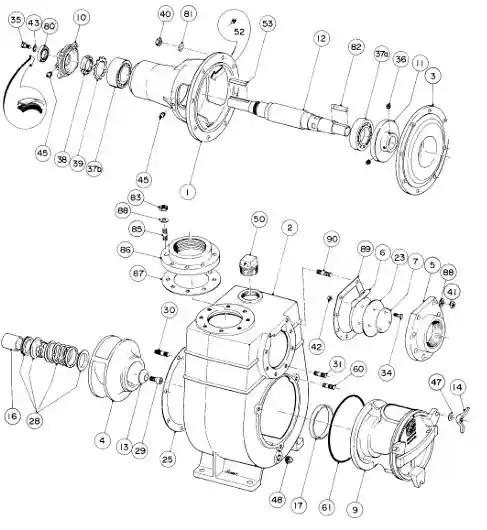

Below is the complete breakdown of repair parts specifically for the Monarch TT-60 (Type A). Please reference the exploded view diagram (found in the product images) to identify the Ref. # required.
TT-60 Repair Parts List
| Ref. # | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 465486 | 1 | Transmission Head |
| 2 | 465421 | 1 | Casing |
| 3 | 465487 | 1 | Seal Plate |
| 4 | 465485 | 1 | Impeller |
| 5 | 465440 | 1 | Suction Flange |
| 6 | 465450 | 1 | Top Weight |
| 7 | 465460 | 1 | Bottom Weight |
| 9 | 465481 | 1 | Clean-out Cover |
| 10 | 466260 | 1 | Bearing Cover |
| 11 | 465479 | 1 | Deflector |
| 12 | 465488 | 1 | Shaft |
| 13 | 471008 | 1 | Impeller Washer |
| 14 | 432940 | 3 | Wing Nut |
| 16 | 465466 | 1 | Sleeve |
| 17 | 465465 | 1 | Wear Ring |
| 23 | 193980 | 1 | Valve |
| 25 | 194090 | 1 | Gasket |
| 28 | 240352 | 1 | Crane Single Seal- Complete |
| 29 | 141000 | 1 | Special Self Locking Socket Head Cap Screw 5/8 UNC x 1 1/2″ |
| 30 | 165890 | 8 | Stud, 5/8 UNC x 3″ |
| 31 | 166480 | 6 | Stud, 3/4 UNC x 2-3/4″ |
| 34 | 226000 | 3 | Hex. Head Bolt, Zn. Pl. 5/16 UNC x 1 1/2″ |
| 35 | 120020 | 4 | Hex. Head Bolt, 3/8 UNC x 1 1/4″ |
| 36 | 148310 | 2 | Socket Set Screw, Knurled 5/16 UNC x 1/2″ |
| 37a | 110330 | 1 | Ball Bearing #6314Z |
| 37b | 110401 | 1 | Ball Bearing #3312/C3 |
| 38 | 110830 | 1 | Bearing Lock Nut #N12 |
| 39 | 111230 | 1 | Bearing Lock Washer #W12 |
| 40 | 128270 | 8 | Hex. Nut 5/8 UNC |
| 41 | 128290 | 8 | Nut 3/4 UNC |
| 42 | 227820 | 3 | Hex. Nut, Zn. Pl., 5/16 UNC x 1/2″ |
| 43 | 176230 | 4 | Spring Washer, Zn. Pl. 3/8″ |
| 45 | 110700 | 2 | Grease Fitting 1/4 NPT |
| 47 | 174490 | 3 | Plain Washer, 11/16 Hole |
| 48 | 185660 | 1 | Pipe Plug, Black 1 NPT |
| 50 | 185810 | 1 | Priming Plug |
| 52 | 185620 | 1 | Pipe Plug, Galv. 1/4 NPT |
| 53 | 466221 | 1 | Key |
| 60 | 165890 | 3 | Stud 5/8 Unce x 3 |
| 81 | 197990 | 1 | “O” Ring #455 |
| 80 | 199330 | 1 | Oil Seal C/R #21098 |
| 81 | 176570 | 8 | Spring Washer, Zn. Pl. 5/8″ |
| 82 | 471014 | 1 | Key |
| 83 | 128290 | 8 | Hex. Nut 3/4 UNC |
| 85 | 166480 | 8 | Stud, 3/4 UNC x 2 3/4″ |
| 86 | 400780 | 1 | Companion Flange |
| 87 | 191930 | 1 | Gasket |
| 88 | 176580 | 16 | Spring Washer 3/4″ |
| 89 | 194110 | 1 | Gasket |
| 90 | 166490 | 2 | Stud, 3/4 UNC x 3″ |
General TT Series Performance Overview
| Model No. | Order No. | Suction & Discharge NPT | Solids Handling | Shaft Diameter | Shaft Length | Key Size | Ship Wt. (lbs.) |
|---|---|---|---|---|---|---|---|
| TT-20 | 608861 | 2″ | 1 1/8″ | 1 1/4″ | 3″ | 1/4″ | 129 |
| TT-30 | 608931 | 3″ | 2″ | 1 1/4″ | 3 1/2″ | 1/4″ | 190 |
| TT-40 | 608911 | 4″ | 3″ | 1 5/8″ | 3 1/2″ | 3/8″ | 420 |
| Hydraulic Adapter | 612881 | Includes bracket and coupling used to couple hydraulic motor with SAE J744C mounting flange to TT-40. | |||||
Frequently Asked Questions (FAQ)
What materials are used in the construction of the Monarch TT-60 pump?
The Monarch TT-60 features a heavy-duty cast gray iron casing with reinforcing ribs. The shaft is made of stainless steel, and the mechanical seal utilizes Viton, stainless steel, and carbon-ceramic components.
Does the TT-60 require tools for clean-out?
No. The clean-out cover is secured with wing nuts, enabling removal for quick access, inspection, or clean-out without the need for wrenches.
Is the wear ring on the TT-60 replaceable?
Yes, the wear ring is fully replaceable (Ref. #17, Code 465465), which helps maintain optimal pump efficiency over the lifespan of the unit.
Can this pump handle solids?
Yes, the TT Series is designed as a trash pump with a two-vane enclosed cast gray iron impeller specifically capable of handling spherical solids.
