Monarch WSV50HAM Series Submersible Effluent Pump Vortex

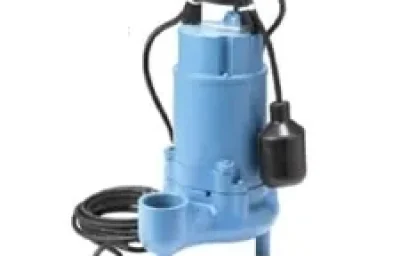

Monarch WSV50HAM: Advanced Vortex Effluent Pumping
The Monarch WSV50HAM Series is a high-performance Submersible Effluent Pump engineered for reliable wastewater management. Designed specifically for effluent applications, this unit utilizes Vortex impeller technology to create a powerful swirling action that ensures smooth flow with reduced clogging risks.
As indicated by the “AM” suffix in the model number, the WSV50HAM is configured for automatic operation. Unlike manual pumps, this series supports automatic water level control when equipped with the optional float switch component, making it ideal for continuous monitoring and pumping tasks in residential or light commercial settings.
Built with serviceability in mind, the WSV50H Series features a modular construction. Key components such as the housing, impeller, mechanical seal, and motor cord are identified with specific replacement codes, ensuring long-term durability and ease of maintenance.
Key Features
- Vortex Impeller Design: Engineered to handle effluent efficiently by creating a vortex that minimizes contact between solids and the impeller vanes.
- Automatic Capability: The HAM configuration allows for automatic on/off operation when integrated with a compatible float switch.
- Submersible Construction: Fully rated for submerged operation in effluent environments.
- Modular Serviceability: Designed with replaceable parts including the cord, handle, capacitor, and casing for extended lifecycle support.
- Rugged Assembly: Features a durable housing assembly and casing built to withstand demanding wastewater conditions.
- Mechanical Seal Protection: Includes a dedicated mechanical seal to protect internal motor components from fluid intrusion.
Applications
- Septic system effluent transfer
- Residential wastewater handling
- Sump pit dewatering
- Light industrial liquid transfer requiring automatic control
Repair Parts List

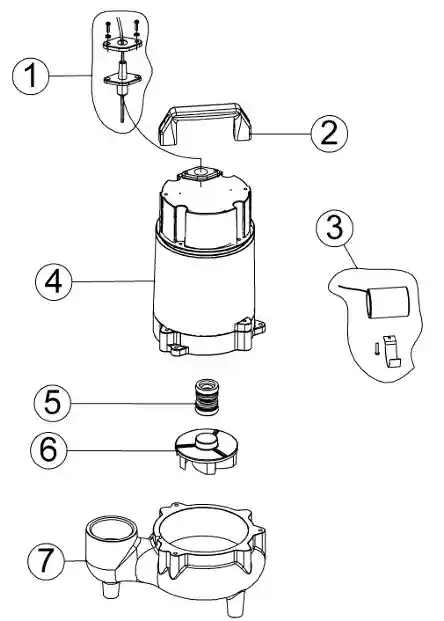

| Ref. | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 246261 | 1 | Cord |
| 2 | 246118 | 1 | Handle |
| 3 | 246268 | 1 | Capacitor |
| 4 | 246269 | 1 | Housing assembly |
| 5 | 246265 | 1 | Mechanical seal |
| 6 | 246270 | 1 | Impeller |
| 7 | 246271 | 1 | Casing |
| N/S | 206616 | 1 | Float switch |
Frequently Asked Questions (FAQ)
Q: What does the “AM” stand for in Monarch WSV50HAM?
A: The “AM” indicates the Automatic version of the model, which supports the installation and use of a float switch for hands-free operation, unlike the manual “HM” version.
Q: Is the Monarch WSV50HAM suitable for sewage or effluent?
A: According to the technical documentation, the WSV50H Series is classified specifically as a Submersible Effluent Pump, designed for effluent transfer rather than raw sewage.
Q: Can I replace the power cord if it gets damaged?
A: Yes, the parts list identifies the Cord (Code #246261) as a distinct replaceable component, allowing for repairs without replacing the entire pump.
Q: Does the pump come with a float switch installed?
A: The Float switch (Code #206616) is listed in the parts breakdown for the series. When ordering the WSV50HAM, this component is intended to be included to enable automatic functionality.
Q: Where can I find the replacement Impeller for this pump?
A: The specific replacement Impeller for the WSV50H Series is identified as Code #246270. Always verify part compatibility before ordering.
