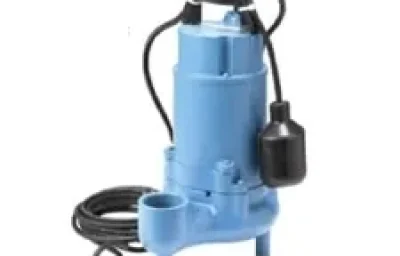

Monarch WSV50HM Series Submersible Effluent Pump Vortex
Monarch WSV50HM: Reliable Vortex Effluent Pumping
The Monarch WSV50HM Series is a specialized Submersible Effluent Pump designed to handle demanding wastewater applications. Featuring a Vortex Impeller design, this pump creates a powerful swirling action that allows fluid and solids to pass through the pump casing with minimal contact, significantly reducing the risk of clogging compared to standard pumps.
This unit is built for durability and serviceability. The WSV50HM (Manual operation) is engineered with a modular design, featuring a distinct housing assembly, mechanical seal, and heavy-duty casing. The inclusion of a capacitor in the assembly indicates a reliable motor design intended for consistent performance in effluent systems.
Key Features
- Vortex Impeller Technology: The “Vortex” designation ensures high efficiency in moving effluent and preventing clogs, making it ideal for septic and effluent applications.
- Submersible Design: Fully submersible unit capable of operating efficiently while submerged in wastewater.
- Serviceable Construction: Designed with replaceable components including the cord, handle, capacitor, and mechanical seal, extending the life of the pump through easy maintenance.
- Rugged Housing: Features a robust housing assembly and casing to withstand harsh operating environments.
- Manual Operation: The “M” in the model number indicates a manual pump, ideal for use with external control panels or specific switching requirements.
Applications
- Septic tank effluent pumping
- Residential wastewater removal
- Sump drainage
- Water transfer applications
Technical Specifications: Repair Parts List
The table below details the specific construction and replaceable components for the WSV50HM and WSV50HAM series.
| Ref. | Code # | Qty. | Description |
|---|---|---|---|
| 1 | 246261 | 1 | Cord |
| 2 | 246118 | 1 | Handle |
| 3 | 246268 | 1 | Capacitor |
| 4 | 246269 | 1 | Housing assembly |
| 5 | 246265 | 1 | Mechanical Seal |
| 6 | 246270 | 1 | Impeller |
| 7 | 246271 | 1 | Casing |
| N/S | 206616 | 1 | Float switch |
Frequently Asked Questions
Q: What type of impeller does the Monarch WSV50HM use?
A: The WSV50HM utilizes a Vortex Impeller (Part #246270), which is designed to handle solids efficiently by creating a whirlpool effect that minimizes contact between the solids and the impeller vanes.
Q: Is the WSV50HM an automatic or manual pump?
A: The “M” in the model number WSV50HM typically denotes a Manual pump. Automatic versions usually carry the “AM” suffix (WSV50HAM) and include a float switch.
Q: Can I replace the power cord on this pump?
A: Yes, the parts list indicates that the Cord (Part #246261) is a replaceable component, allowing for repairs without replacing the entire unit.
Q: What is the difference between the WSV50H and WSV52H series?
A: While they look similar, the internal components differ. For example, the WSV50HM uses Impeller #246270, whereas the WSV52H series uses a different impeller. It is important to use the correct parts list for your specific model series.
