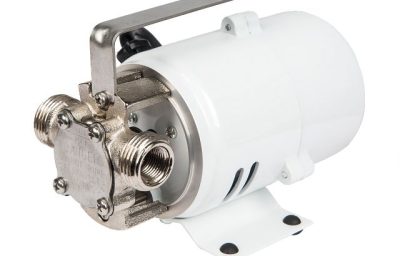

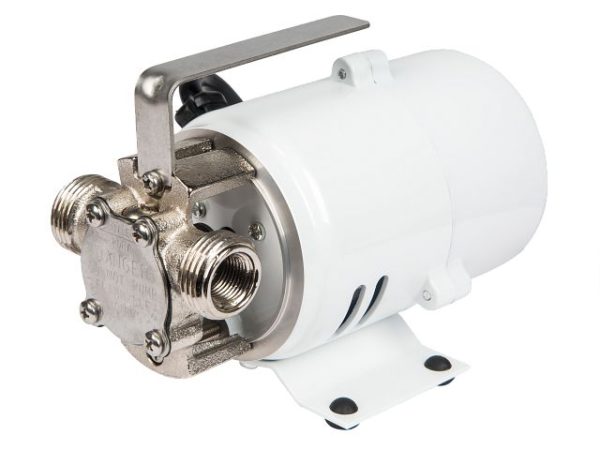

Pony Pump Series Utility Pump
The Pony Pump® Series features a lightweight 115-Volt AC pump that can be used to empty water beds, drain water heaters or aquariums, transfer water to an RV, and other applications. A reliable choice for commercial, industrial and residential uses where water must be transferred.
Features & Benefits
- 1/10 horsepower motor
- Self-priming for instant delivery or dewatering up to 6′
- 360 GPH at 1′ maximum performance
- Includes two extra impellers and gasket
- Includes 6′ power cord
- Separate kit options are available
Overview
This self-priming transfer pump is non-submersible and is available in either stainless steel or plated brass pump body, dependent upon model selection. The pump has a dual threaded intake and discharge with both 3/4″ male garden hose thread and 3/8″ FNPT. Models come with variations of shaft seal options including nitrile or fluoroelastomer for improved temperature and abrasion resistance. A rugged metallic handle is attached for easy portability. Replacement part kits are sold separately.
Specifications
| Capacity | 360 gph @ 1′ / 115 V 360 gph @ 1′ / 12 VDC |
| Shut Off | 25′ (4.6 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Intake / Discharge | Dual threaded 3/4″ MNPT and 3/8″ FNPT |
| Impeller | Buna |
| Electrical | 115 V, 60 Hz, 1.6A 12 VDC, 7 A |
| Operation | Self-Priming |
Performance
| Head | GPH (LPH) / 115 V | GPH (LPH) / 12 VDC |
| 1′ | 360 (1362.8) | 300 (1135.6) |
| 5′ | 330 (1249.2) | 270 (1022.1) |
| 10′ | 300 (1135.6) | 240 (908.5) |
| 20′ | 250 (946.4) | 202 (764.7) |
