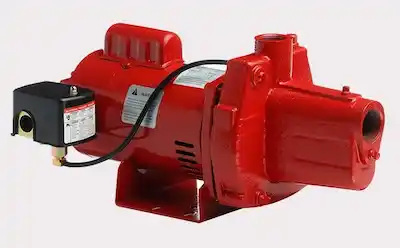

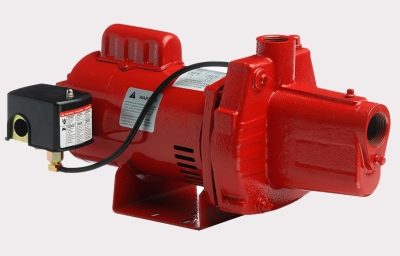

Red Lion Premium Cast Iron Shallow Well Jet Pump RJS-XX-PREM Series
Click to rate this post!
[Total: 2 Average: 5]
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25′.
FEATURES & BENEFITS
- Premium shallow well jet pump – able to handle the water demands of large homes, cottages, and farms
- Rugged cast iron casing – for years of service and reliability
- Heavy-duty dual voltage (115/230 Volt) motor with capacitor – for increased starting power
- Includes factory pre-set 30/50 pressure switch – produces up to 50 psi with automatic shut-off
- Glass-filled thermoplastic impeller and diffuser – for superior performance and efficient water flow
- Repair kits are now available – for additional information please see Owner’s Manual
Exploded Parts
REPLACEMENT PARTS
| Item # | Item Description | Where Used | Contents |
|---|---|---|---|
| 305584001 | Case Kit | All RJS-PREM Models | 9 |
| 305584002 | Seal Plate Kit | All RJS-PREM Models | 2 |
| 305584003 | Nozzle/Venturi Kit | RJS-50-PREM | 3, 7, & 8 |
| 305584004 | Nozzle/Venturi Kit | RJS-75-PREM | 3, 7, & 8 |
| 305584005 | Nozzle/Venturi Kit | RJS-100-PREM | 3, 7, & 8 |
| 305584006 | Overhaul Kit | RJS-50-PREM | 3, 4, 5, 6, 7, & 8 |
| 305584007 | Overhaul Kit | RJS-75-PREM | 3, 4, 5, 6, 7, & 8 |
| 305584008 | Overhaul Kit | RJS-100-PREM | 3, 4, 5, 6, 7, & 8 |
| 305584009 | Impeller/Diffuser Kit | RJS-50-PREM | 3, 5, & 6 |
| 305584010 | Impeller/Diffuser Kit | RJS-75-PREM | 3, 5, & 6 |
| 305584011 | Impeller/Diffuser Kit | RJS-100-PREM | 3, 5, & 6 |
| 305584012 | Shaft Seal Kit | All RJS-PREM Models | 3 & 4 |
| 305584013 | Gasket/Hardware Kit | All RJS-PREM Models | 3, 10, 11, & 12 |
| 305584014 | Pressure Switch Kit | All RJS-PREM Models | 1, 13 |
| 305584024 | Tube Kit | All RJS-PREM | 13 |
| 640005 | Pump/Tank Hardware Kit | RJS-50-PREM/RL6H and RJS-PREM/RL14H | 14 |
Product Info
| Model | Item Number | UPC | HP | Intake | Discharge | Amps/Volts | Suction Lift | Discharge Pressure (PSI) | Max Pressure PSI | Max Head | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 40 | 50 | 60 | ||||||||||
| US Gallons Per Minute | |||||||||||||
| RJS-50-PREM | 602206 | 0 10121 14702 7 | 1/2 | 1-1/4″ FNPT | 1″ FNPT | 11.8A @ 115V 5.9 A @ 230V | 5′ | 12.6 | 10 | 6.1 | 2 | 65 | 150′ |
| 15′ | 10 | 7.9 | 4 | – | 60 | 139′ | |||||||
| 25′ | 6.9 | 6.2 | 2.5 | – | 55 | 127′ | |||||||
| RJS-75-PREM | 602207 | 0 10121 14704 1 | 3/4 | 1-1/4″ FNPT | 1″ FNPT | 14.4A @ 115V 7.2A @ 230V | 5′ | 16.7 | 12.5 | 7 | 1.8 | 65 | 150′ |
| 15′ | 13.1 | 10 | 4.9 | – | 60 | 139′ | |||||||
| 25′ | 8.4 | 7.1 | 2.1 | – | 55 | 127′ | |||||||
| RJS-100-PREM | 602208 | 0 10121 14705 6 | 1 | 1-1/4″ FNPT | 1″ FNPT | 17.6A @ 115V 8.8A @ 230V | 5′ | 23.2 | 16.8 | 10.6 | 3.5 | 65 | 150′ |
| 15′ | 19.5 | 14.1 | 7.7 | – | 60 | 139′ | |||||||
| 25′ | 13.3 | 11.5 | 5.3 | – | 55 | 127′ | |||||||
Carton Specifications
| Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RJS-50-PREM | 10.5″ | 20.5″ | 10.25″ | 38 | 1.28 | 24 | 6 | 4 |
| RJS-75-PREM | 10.5″ | 20.5″ | 10.25″ | 39 | 1.28 | 24 | 6 | 4 |
| RJS-100-PREM | 10.5″ | 20.5″ | 10.25″ | 40 | 1.28 | 24 | 6 | 4 |
