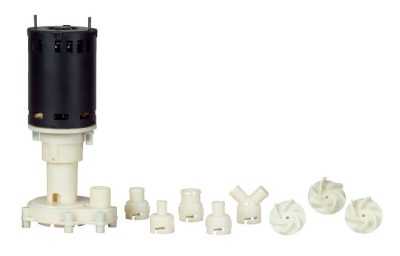

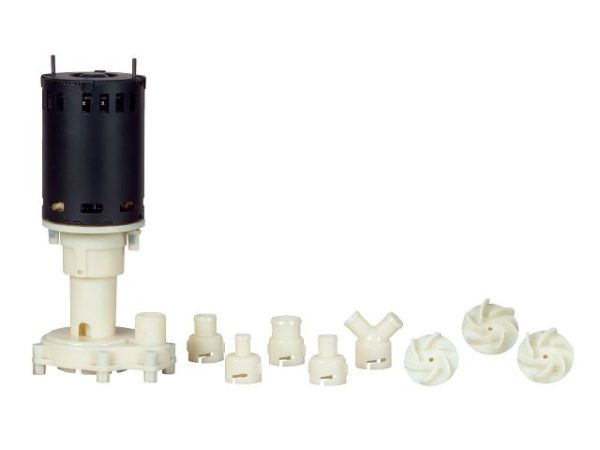

RIM-U Series Ice Machine Replacement Pump
Known for running continuously, commercial ice machine water pumps wear over time. Specifically designed for drinking water, the Little Giant RIM-U ice machine replacement pump is the perfect replacement for commercial ice machine water pumps. The RIM-U ice machine replacement pump includes multiple adapters and impellers to work with most commercial ice machines.
Features & Benefits:
- 1/25 horsepower
- Dual voltage (115/230 Volt)
- Impeller sizes (O.D.) included are: 1.75-inch, 1.83-inch, 1.95-inch and 2.10-inch
- Discharge adapters included are: 1/2-inch, 5/8-inch, 3/4-inch, 1-inch, and a 5/8-inch Y adapter
- NSF/ANSI 372 compliant
Overview
The RIM-U ice machine replacement pump is equipped with a thermally protected, fan-cooled motor with moisture-proof windings and upper and lower sealed ball bearings to increase performance. The RIM-U ice machine replacement pump features a corrosion-resistant stainless steel motor shaft and moisture-proof motor windings. The pump easily disassembles for installation and servicing. This pump is designed to re-use the original ice machine pump mounting bracket. This pump is CSA certified to USA and Canadian standards.
Specifications
| Capacity | Varies based on discharge adapter |
| Discharge | Multiple discharge adapters included |
| Impeller | NSF Listed |
| Electrical | 115/230 V, 50/60 Hz, 1.5/0.75 A |
| Impeller Diameter | 1/2″ (12.7 mm) Discharge Adapter | 5/8″ (15.8 mm) Discharge Adapter | 3/4″ (19.1 mm) Discharge Adapter | 1″ (24.5 mm) Discharge Adapter |
| 1.75″ (44.5 mm) | 290 (1097) | 435 (1646) | 540 (2044) | 585 (2214) |
| 1.83″ (46.5 mm) | 360 (1362) | 550 (2081) | 700 (2649) | 810 (3066) |
| 1.95″ (49.5 mm) | 385 (1457) | 600 (2271) | 760 (2876) | 825 (3122) |
| 2.10″ (53.3 mm) | 400 (1514) | 600 (2271) | 700 (2649) | 760 (2876) |
Order Information
RIM-U Series Ice Machine Replacement Pump
| Item | Model | Volts |
|---|---|---|
| 545600 | RIM-U | 230 VAC |
