Shallow Well Jet Pump System

Click to rate this post!

[Total: 0 Average: 0]

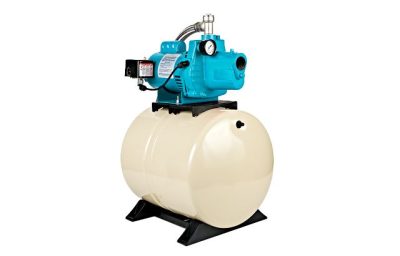

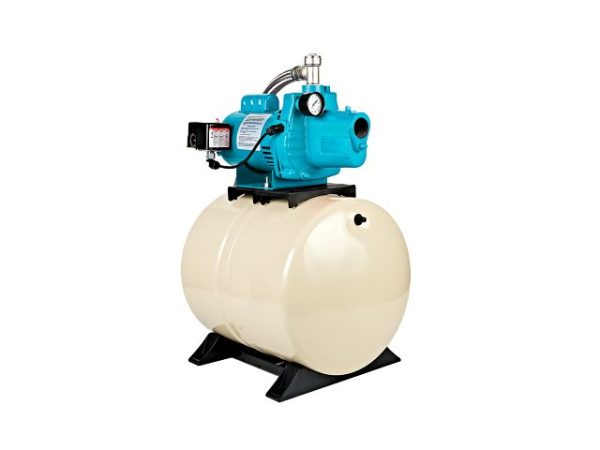

The LGS pump and tank system is ideal for the supply of fresh water to rural homes, farms, and cabins where compact system size and ease of installation are most important.

Features & Benefits

Jet pump and precharged pressure tank are factory assembled & ready to install
Shallow well jet pump, casing is made of rugged cast iron – 3/4 HP, 115/230 V
Factory pre-set 30/50 pressure switch, pressure gauge, and foot valve included
Precharged steel pressure tank – 14 U.S. gallons
High-performance variable geometry Butyl rubber diaphragm membrane
Internal polypropylene liner
Pressure tank is tested and certified by WQA under NSF/ANSI/CAN Standard 61 for material safety and NSF/ANSI 372 for lead free compliance
Jet pump is tested and certified by CSA to UL 778 and CSA 108 for electrical safety and NSF/ANSI 372 for lead free compliance

Overview

This compact pump and tank system is suitable for installations where the vertical distance from the pump to the water level does not exceed 25 ft (7.6 m). The pump intake is 1-1/4″ FNPT while the discharge is 1″ FNPT; tank discharge is 3/4″. The jet pump and pre-charged pressure tank are factory assembled and ready to install.

Specifications

Performance

Order Information
