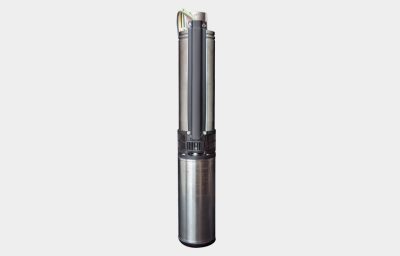

STAINLESS STEEL SUBMERSIBLE PUMPS
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins that have 4″ and greater diameter drilled wells to depths of 250′.
FEATURES & BENEFITS
- Powered by industry standard 3-wire motors
- Thermoplastic motor bracket
- Stainless steel pump shell and discharge
- Built-in suction screen
- New integrated VFD-style check valve improves performance when running at lower flow rates
- Available in 5, 7, 10, 15, and 20 GPM
- Control box is not included
Order Numbers
|
HP |
GPM |
Volts |
Wire |
Model No. |
Order No. |
Order No. Control Box |
|---|---|---|---|---|---|---|
|
1/2 |
5 |
230 |
3 |
RS5G05-3W2V |
14942373 |
640189 |
|
3/4 |
5 |
230 |
3 |
RS5G07-3W2V |
14942374 |
640190 |
|
1/2 |
7 |
230 |
3 |
RS7G05-3W2V |
14942386 |
640189 |
|
3/4 |
7 |
230 |
3 |
RS7G07-3W2V |
14942376 |
640190 |
|
1/2 |
10 |
230 |
3 |
RS10G05-3W2V |
14942377 |
640189 |
|
3/4 |
10 |
230 |
3 |
RS10G07-3W2V |
14942378 |
640190 |
|
1 |
10 |
230 |
3 |
RS10G10-3W2V |
14942379 |
640191 |
|
1-1/2 |
10 |
230 |
3 |
RS10G15-3W2V |
14942380 |
640222 |
|
3/4 |
15 |
230 |
3 |
RS15G07-3W2V |
14942381 |
640190 |
|
1 |
15 |
230 |
3 |
RS15G10-3W2V |
14942382 |
640191 |
|
1-1/2 |
15 |
230 |
3 |
RS15G15-3W2V |
14942383 |
640222 |
|
1 |
20 |
230 |
3 |
RS20G10-3W2V |
14942384 |
640191 |
|
1-1/2 |
20 |
230 |
3 |
RS20G15-3W2V |
14942385 |
640222 |
Carton Specifications
|
Model |
Length (inches) |
Width (inches) |
Height (inches) |
Carton Cubes (cu ft) |
Weight (lbs) |
|---|---|---|---|---|---|
|
RS5G05-3W2V |
4.25 |
4.31 |
47 |
0.49 |
24 |
|
RS5G07-3W2V |
4.25 |
4.31 |
47 |
0.49 |
27 |
|
RS7G05-3W2V |
4.25 |
4.31 |
41.3 |
0.43 |
24 |
|
RS7G07-3W2V |
4.25 |
4.31 |
47 |
0.49 |
27 |
|
RS10G05-3W2V |
4.25 |
4.31 |
41.3 |
0.43 |
24 |
|
RS10G07-3W2V |
4.25 |
4.31 |
41.3 |
0.43 |
27 |
|
RS10G10-3W2V |
4.25 |
4.31 |
47 |
0.49 |
31 |
|
RS10G15-3W2V |
4.25 |
4.31 |
51.3 |
0.54 |
33 |
|
RS15G07-3W2V |
4.25 |
4.31 |
47 |
0.49 |
27 |
|
RS15G10-3W2V |
4.25 |
4.31 |
47 |
0.49 |
31 |
|
RS15G15-3W2V |
4.25 |
4.31 |
51.3 |
0.54 |
33 |
|
RS20G10-3W2V |
4.25 |
4.31 |
47 |
0.49 |
31 |
|
RS20G15-3W2V |
4.25 |
4.31 |
51.3 |
0.54 |
33 |
Control Boxes for 4" Submersible Well Pumps
|
Model |
Warranty |
Item Number |
UPC |
HP |
Volts |
Length (in) |
Width (in) |
Height (in) |
Wt. (lbs) |
Carton Cubes (cu ft) |
Master Pack Qty. |
Pallet Quantity |
Qty. per Layer |
Layers per Pallet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLCB05-115 |
2yr Gold |
640188 |
0 10121 12203 1 |
1/2 |
115 |
8.75″ |
5.25″ |
3.25″ |
3 |
0.09 |
10 |
45 Master Packs |
9 Master Packs |
5 |
|
RLCB05-230 |
640189 |
0 10121 12204 8 |
1/2 |
230 |
8.75″ |
5.35″ |
3.25″ |
3 |
0.09 |
10 |
45 Master Packs |
9 Master Packs |
5 |
|
|
RLCB07-230 |
640190 |
0 10121 13096 8 |
3/4 |
230 |
9.0″ |
5.25″ |
3.0″ |
3 |
0.08 |
10 |
45 Master Packs |
9 Master Packs |
5 |
|
|
RLCB10-230 |
640191 |
0 10121 13097 5 |
1 |
230 |
9.0″ |
5.5″ |
3.5″ |
3 |
0.1 |
10 |
45 Master Packs |
9 Master Packs |
5 |
|
|
RLCB15-230 |
640222 |
0 10121 13173 6 |
1-1/2 |
230 |
11.5″ |
8.25″ |
6.25″ |
6 |
0.34 |
10 |
45 Master Packs |
9 Master Packs |
5 |
