Submersible Pumps of the PST series
Click to rate this post!
[Total: 1 Average: 5]

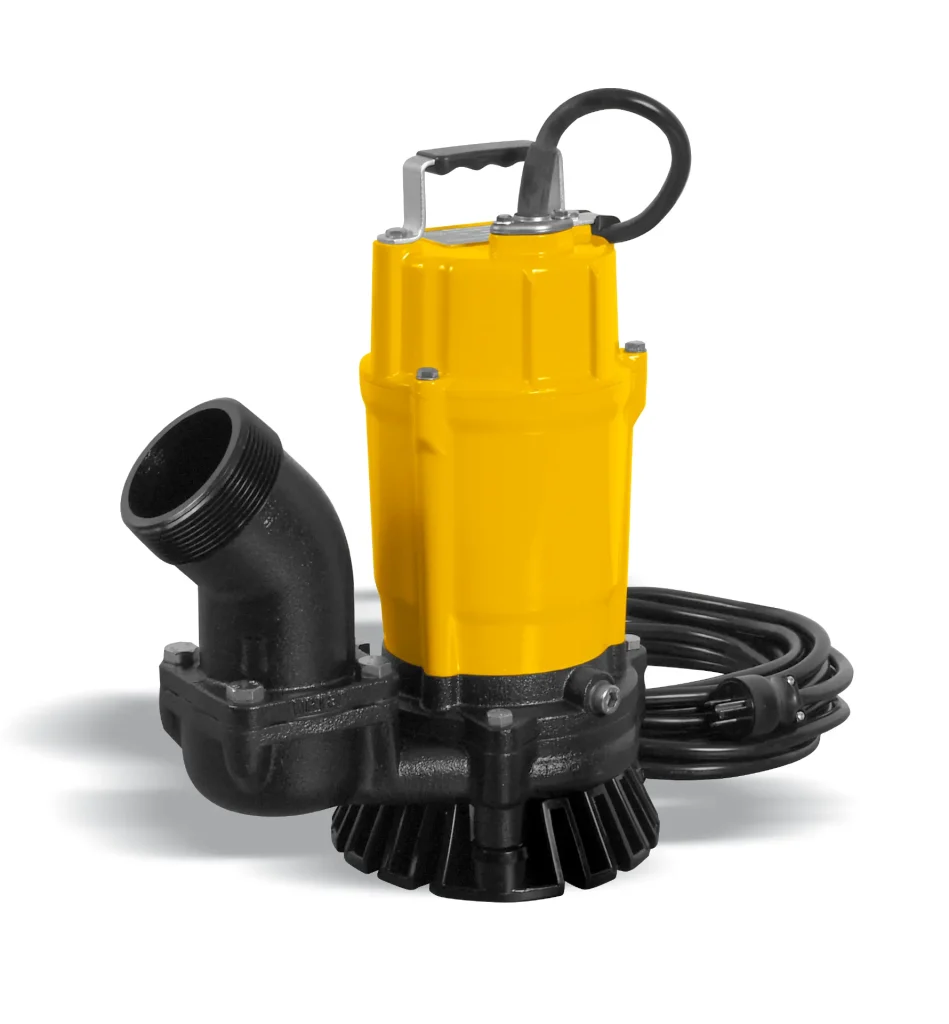

PST Series Submersible Pumps – Wacker Neuson: Durable, lightweight and perfect for any job
No matter how large or small the job, Wacker Neuson’s single-phase submersible pumps offer the versatility and durability contractors need for light dewatering on the job site.
Lightweight, compact design
- The pump is lightweight and small which makes it perfect for any application.
- Easy to store and transport.
Built-in thermal protection prevents motor damage
- Built-in thermal protection prevents motor damage due to impeller blockage, reducing service repairs.
- Motor protection eliminates worry during operation.
Durable mechanical seals
- Silicon carbide-faced double mechanical seals run in an isolated oil-filled cavity, allowing for seal lubrications, cooling and overall motor protection.
More Features
Quality
Heavy-duty strain relief power cord
- Robust power cord stands up to the rigors of the construction site.
Technical Data
Metric
| Model Variations | PST2 400 | PSQ2 500 | PST2 400 | PSTS 750 | PSTS 750 |
|---|---|---|---|---|---|
| Phase | 1~ | ||||
| Flow rate max. | 200 l/min | 240 l/min | 200 l/min | 240 l/min | 290 l/min |
| Solid diameter max. | 7 mm | 6 mm | 7 mm | 6 mm | 19 mm |
| Delivery height max. | 12 m | 12 m | 12 m | 12 m | 19 m |
| Length | 250 mm | 210 mm | 255 mm | 377 mm | 377 mm |
| Width | 185 mm | 210 mm | 185 mm | 185 mm | 185 mm |
| Height | 328 mm | 326 mm | 328 mm | 388 mm | 388 mm |
| Operating weight | 11.3 kg | 10.5 kg | 11.3 kg | 19 kg | 19 kg |
| Intake-/Pressure socket-dia. | 50 mm | 50 mm | 80 mm | 80 mm | |
| Nominal power | 0.4 KW | 0.48 KW | 0.4 KW | 0.75 KW | 0.75 KW |
| Nominal current | 5.4 A | 6.1 A | 5.4 A | 10 A | 10 A |
| Nominal voltage | 110 V | 110 V | 110 V | 110 V | 110 V |
| Nominal frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Nominal speed | 3,350 1/min | 3,255 1/min | 3,321 1/min | 3,408 1/min | 3,408 1/min |
| Length Cable | 6 m | 10 m | 6.2 m | 10 m | 10 m |
| Cable cross-section | 1.3 mm² | 1.3 mm² | 2 mm² | 2 mm² | |
| Cable definition | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath | |
| Temperature limit borrowed liquid | 40°C | 40°C | 40°C | 40°C | |
| Length for shipping | 450 mm | 475 mm | 450 mm | 480 mm | 480 mm |
| Width for shipping | 255 mm | 257 mm | 255 mm | 380 mm | 380 mm |
| Height for shipping | 217 mm | 260 mm | 217 mm | 290 mm | 290 mm |
| Shipping weight | 13.2 kg | 17 kg | 16.8 kg | 21.9 kg | 21.9 kg |
Imperial
| Specification | PST2 400 | PSQ2 500 | PST2 400 | PSTS 750 | PSTS 750 |
|---|---|---|---|---|---|
| Phase | 1~ | ||||
| Flow rate max. | 52.8 gal/min | 63.4 gal/min | 52.8 gal/min | 63.4 gal/min | 69.8 gal/min |
| Solid diameter max. | 0.3″ | 0.2″ | 0.3″ | 0.2″ | 0.2″ |
| Delivery height max. | 39.4 Feet | 39.4 Feet | 39.4 Feet | 39.4 Feet | 62.3 Feet |
| Length | 9.8″ | 8.3″ | 10″ | 12.5″ | 12.5″ |
| Width | 7.3″ | 8.3″ | 7.3″ | 7.3″ | 7.3″ |
| Height | 12.9″ | 11.2″ | 12.9″ | 15.3″ | 15.3″ |
| Operating weight | 24.9 lb | 23.1 lb | 24.9 lb | 41.9 lb | 41.9 lb |
| Intake/Pressure socket-dia. | 2″ | 2″ | 3.1″ | 3.1″ | |
| Nominal power | 0.4 KW | 0.48 KW | 0.4 KW | 0.75 KW | 0.75 KW |
| Nominal current | 5.4 A | 6.1 A | 5.4 A | 10 A | 10 A |
| Nominal voltage | 110 V | 110 V | 110 V | 110 V | 110 V |
| Nominal frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Nominal speed | 3,350 1/min | 3,255 1/min | 3,321 1/min | 3,408 1/min | 3,408 1/min |
| Length Cable | 19.7 Foot | 32.8 Foot | 20.3 Foot | 32.8 Foot | 32.8 Foot |
| Cable cross-section | 0 inch² | 0 inch² | 0 inch² | 0 inch² | |
| Cable definition | PVC Sheath | PVC Sheath | PVC Sheath | PVC Sheath | |
| Temperature limit borrowed liquid | 104°F – 32°F | 104°F – 32°F | 104°F – 32°F | 104°F – 32°F | |
| Length for shipping | 18.1″ | 18.7″ | 18.1″ | 19″ | 19″ |
| Width for shipping | 10″ | 10.5″ | 10″ | 13″ | 13″ |
| Height for shipping | 8.5″ | 10.2″ | 8.5″ | 10.2″ | 10.2″ |
| Shipping weight | 29.1 lb | 37.4 lb | 36.8 lb | 48.2 lb | 48.2 lb |
Model Variations
PST2 400
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
- Item Number
- 5000009112
PSG2 500
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
- Item Number
- 5000620412
PSTF2 400
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
- Item Number
- 5000620435
PST3 750
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
- Item Number
- 5000620440
PSTF3 750
High performance submersible pump to handle solids up to 0.4 in for fast and reliable dewatering.
- Item Number
- 5000620441
