SUCTION TRANSFER HOSE KITS
Click to rate this post!
[Total: 0 Average: 0]
APPLICATIONS
Our hose kits are designed to work with our Engine Drive Pumps and includes all of the attachments required to complete your applications. Ideal for general purpose use in high volume liquid transfer and contractor dewatering applications.
Product Info
| Description | Model | Item No. | UPC | Suction Hose | Discharge Hose |
|---|---|---|---|---|---|
| 2″ Hose Kit | 2HKP | 617212 | 0 10121 14640 2 | 12′ Reinforced | 50′ Lay-Flat |
| 3″ Hose Kit | 3HKP | 617201 | 0 10121 14001 1 | 3″ I.D. x 20′ PVC | 50′ Lay-Flat |
CARTON SPECIFICATIONS
| Description | Model | Length | Width | Height | Weight (lbs) | Pallet Quantity | Quantity per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| 2″ Hose Kit | 2HKP | 17.25″ | 19.12″ | 10.75″ | 29.25 | 16 | 4 | 4 |
| 3″ Hose Kit | 3HKP | 34″ | 35″ | 9″ | 52.0 | 5 | 5 | 1 |

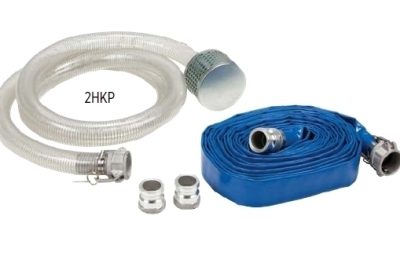

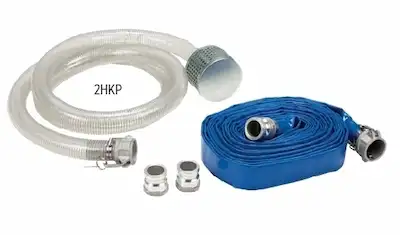

2" HOSE KIT
12′ reinforced suction hose and 50′ lay-flat discharge hose with attached couplings. Includes:
- Two 2″ aluminum adapters (for use with quick connect couplers)
- Stainless steel strainer
- Temperature range 15 °F to 150 °F
3" HOSE KIT
20′ PVC suction hose and 50′ discharge hose assemblies in 3″ ID for attachment to an aluminum, poly or cast iron pump. Includes:
- 3″ steel strainer
- Aluminum adapter for cast iron pump applications
- Spanner wrench
- Temperature range 15 °F to 150 °F hose assembly included
