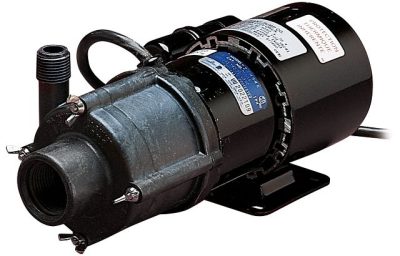

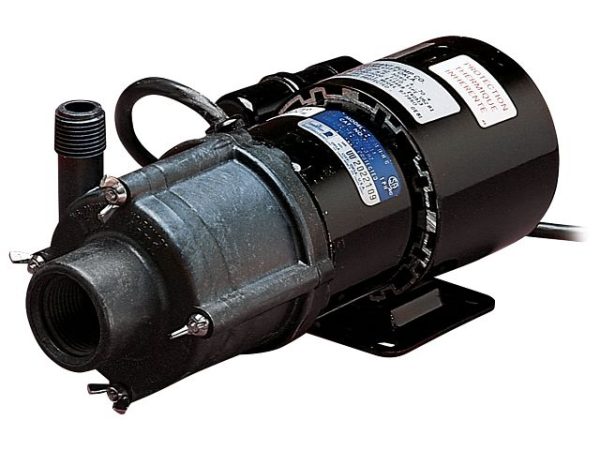

TE-4-MD-HC Series Magnetic Drive Pump
Click to rate this post!
[Total: 0 Average: 0]
When it comes to choosing a chemical transfer pump, it’s all about compatibility with the fluids you will be pumping. From highly corrosive acids solutions and solvents to sterile solutions and other abrasives, the TE-4-MD-HC is ideal for heavy use and is a steady performer in the effortless transfer of highly corrosive fluids.
Features & Benefits
- 1/10 hp open TEFC PSC motor
- Glass-filled polyphenylene sulfide magnet housing and volute
- 1.1 specific gravity
- Fluoroelastomer (FKM) O-ring
- Ceramic thrust washers and shaft
- Run dry capability up to 8 hours
Overview
The TE-4-MD-HC Series features leakproof, seal-less magnetic drives and is designed for in-line, non-submersed use. Built to outlast high corrosives and temperatures, the TE-4-MD-HC is equipped with an open, totally enclosed fan-cooled split capacitor motor with sleeve bearings and chemical-resistant components. It also has a run-dry capability of up to 8 hours.
Specifications
| Capacity | 14.2 gpm @ 1′ |
| Shut Off | 24.3′ (7.4 m) |
| Max. Liquid Temp. | 200 °F (93.3 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Glass-filled polyphenylene sulfide w/ carbon bushing |
| Electrical | 115 V, 50/60 Hz, 1.7 A 230 V, 50/60 Hz, 0.5/0.7 A |
Performance
115 or 230 V, 60 Hz
| Head | GPM (LPM) |
| 1′ | 14.2 (53.8) |
| 3′ | 13.5 (51.1) |
| 6′ | 12.8 (48.5) |
| 9′ | 11.8 (44.7) |
| 15′ | 9.2 (34.8) |
