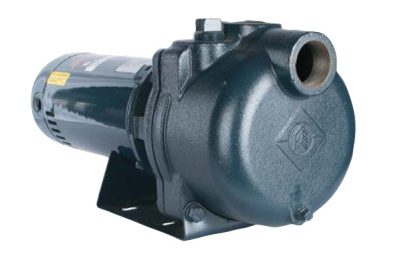

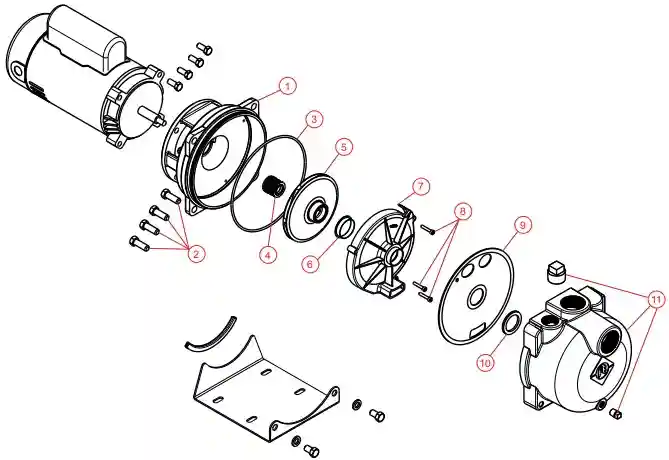

Turf Boss 1-2 HP Repair Parts Breakdown
Click to rate this post!
[Total: 2 Average: 5]
| Fig. | Description | Kit Grouping Identifier* | Repair Part Order Codes by Model Number | Materials of Construction | ||
|---|---|---|---|---|---|---|
| FTB1CI | FTB15CI | FTB2CI | ||||
| 1 | Plug Kits | A | 305390901 | CAD Plated | ||
| 2 | Pump Case | B | 305391901 | ASTM A48 Cast Iron | ||
| 3 | Grommet | C | 305392901 | BUNA-N | ||
| Grommet | G | 305396901 | 305396902 | 305396903 | BUNA-N | |
| 4 | Diaphragm | C | 305392901 | Neoprene | ||
| Diaphragm | G | 305396901 | 305396902 | 305396903 | Neoprene | |
| 5 | Fastener Kit* | D | 305393901 | CAD Plated | ||
| 6 | Diffuser | E | 305394901 | 305394902 | 305394903 | Modified PPO |
| Diffuser | G | 305396901 | 305396902 | 305396903 | Modified PPO | |
| 7 | Wear Ring | E | 305394901 | 305394902 | 305394903 | Stainless Steel |
| Wear Ring | G | 305396901 | 305396902 | 305396903 | Stainless Steel | |
| 8 | Impeller | E | 305394901 | 305394902 | 305394903 | Modified PPO |
| Impeller | G | 305396901 | 305396902 | 305396903 | Modified PPO | |
| 9 | Mechanical Seal | F | 305395901 | Carbon/Ceramic/Stainless Steel | ||
| Mechanical Seal | G | 305396901 | 305396902 | 305396903 | Carbon/Ceramic/Stainless Steel | |
| 10 | Motor Bracket | H | 305397901 | ASTM A48 Cast Iron | ||
| 11 | Motor | I | 305398901 | 305398902 | 305398903 | – |
| 12 | Base Assembly | J | 305399901 | C.R.S. | ||
