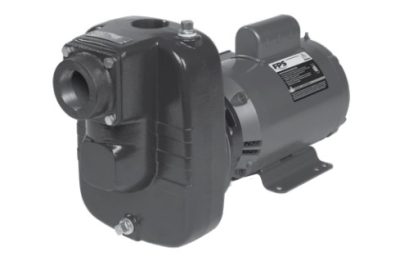

Turf Boss 3-5 HP Dimensions
Click to rate this post!
[Total: 1 Average: 5]
| Model | Enclosure | Pump Size (SUC. X DIS) | Dimensions (in.) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | E | F | H | AB | BA | OP | |||
| FTB3CI | ODP | 2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.75 | 3.50 | 23.78 |
| FTB3CI-E | TEFC | 2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.44 | 6.87 | 3.50 | 29.59 |
| FTB3CI-T | ODP | 2″ X 2″ | 6.50 | 5.94 | 3.50 | 2.75 | 5.00 | 0.34 | 5.62 | 2.88 | 22.41 |
| FTB3CI-TE | TEFC | 2″ X 2″ | 6.50 | 5.94 | 3.50 | 2.75 | 5.00 | 0.38 | 5.74 | 2.88 | 23.57 |
| FTB3CI-T5E | TEFC | 2″ X 2″ | 6.50 | 5.94 | 3.50 | 2.75 | 5.00 | 0.38 | 5.74 | 2.88 | 23.57 |
| FTB5CI | ODP | 2 1/2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.75 | 3.51 | 23.78 |
| FTB5CI-E | TEFC | 2 1/2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.45 | 6.87 | 3.50 | 26.83 |
| FTB5CI-T | ODP | 2 1/2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.74 | 3.50 | 23.78 |
| FTB5CI-TE | TEFC | 2 1/2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 25.34 |
| FTB5CI-T5E | TEFC | 2 1/2″ X 2″ | 8.63 | 6.50 | 4.50 | 3.75 | 5.50 | 0.41 | 6.87 | 3.50 | 25.34 |
