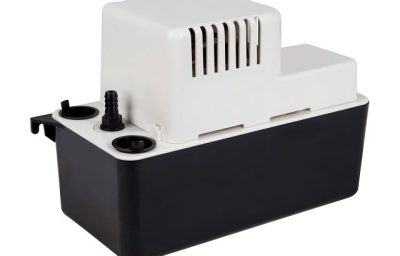

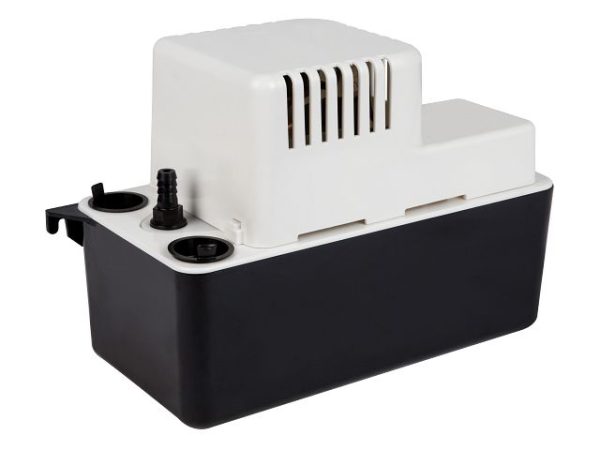

VCMA-20 Series Condensate Pump
Click to rate this post!
[Total: 0 Average: 0]
Avoid excess condensation from your HVAC equipment with Little Giant’s VCMA-20 Series condensate pump. Used to move and direct the flow of condensation produced by boilers, furnaces, air conditioning systems, and hydroponic systems, the VCMA-20 condensate pump is ideal when gravity drainage is not possible or practical. Its state-of-the-art design features a vertical-type pump unit to fit in tight spaces requiring a smaller footprint.
Features & Benefits
- 1/30 hp high-performance motor
- ABS tank, motor cover, and volute
- Stainless steel motor shaft
- ½-gallon tank capacity
- 20′ of 3/8″ clear tubing (554435 & 554461 only)
- CSA certified to US and Canada standards
Overview
The VCMA-20 Series condnesate pump is driven by a 1/30 horsepower high-performance motor with a safety switch and features an ABS tank, motor cover, and volute with 20′ lift. 20′ of 3/8″ durable, clear tubing resists crimping or kinking during operation. Includes 6′ power cord.
Specifications
| Capacity | 80 gph @ 1′ |
| Shut Off | 20′ (6.1 m) / 115 V 17′ (5.2 m) / 230 V |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 3/8″ barbed (9.5 mm) |
| Impeller | Glass-filled Polypropylene |
| Electrical | 115 V, 60 Hz, 1.5 A 230 V, 50/60 Hz, 0.5 A |
| Operation | Automatic |
Performance
| Head | GPH (LPH) |
| 1′ | 80 (303.2) |
| 5′ | 70 (265.3) |
| 10′ | 48 (181.9) |
| 20′ | 0 (0) |
