Diaphragm pump parts are the reason diaphragm pumps stay reliable across so many demanding operations.
When a pump loses pressure, creates noise, or stops moving fluid, the cause almost always traces back to individual pump parts rather than the entire unit. Understanding how these components work together helps teams improve performance, reduce repair time, and extend service life. Diaphragm pumps rely on a controlled pumping action created by flexible diaphragms, internal chambers, and carefully timed air and mechanical components. Each part plays a defined role in moving liquid in one direction while separating the fluid from the energy source. When even one component wears or shifts out of tolerance, efficiency drops, and repair becomes unavoidable. This technical guide provides a clear, visual-style explanation of diaphragm pump parts without requiring diagrams. It explains what each component does, how failures occur, and how maintenance teams can identify problems early. By the end, readers will understand components, materials, repair options, and why replacement parts selection matters for long-term operations. For teams looking to explore specifications, inventories, and documentation related to Diaphragm pump parts, additional technical resources are available to support planning and maintenance workflows.

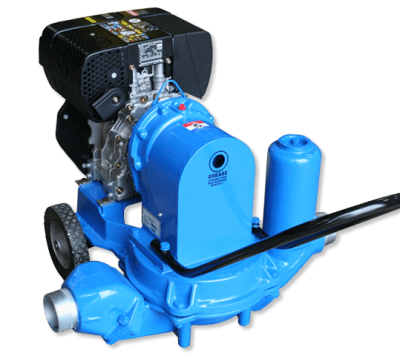

What Is a Diaphragm Pump? Component-Level Overview
Diaphragm pumps are positive displacement pumps that move fluid by flexing a diaphragm inside a sealed chamber. This movement alternates between suction and discharge, allowing controlled transfer of liquid without direct contact between the fluid and mechanical drive components. In an air-operated diaphragm pump, compressed air drives the diaphragm movement. Air pressure enters an air valve, which directs airflow back and forth between chambers. This creates a vacuum on the suction stroke and pressure on the discharge stroke. Key concepts behind diaphragm pumps include:
- The diaphragm separates fluid from air or mechanical energy
- Check balls and seats guide flow in one direction
- Chambers expands and contracts to move liquid
- The pump can accommodate solids, solvents, and viscous materials
Because diaphragm pumps handle various types of fluid, material compatibility and component integrity are essential. Pressure balance, resistance to wear, and sealing effectiveness all affect performance and safety.
Complete Breakdown of Diaphragm Pump Parts
Diaphragm
The diaphragm is the most active and stressed component in diaphragm pumps. It flexes continuously to create suction and discharge within the chamber. Important diaphragm characteristics include:
- Acts as a flexible barrier that separates air and fluid
- Made from elastomers, PTFE, or other material options
- Transfers energy while preventing leaks
Over time, the diaphragm wears, resulting in thinning, cracking, or stiffness. Chemical exposure, pressure cycling, and compression fatigue shorten lifespan. In most pump models, diaphragms are designed for replacement using repair kits rather than full unit replacement.
Pump Housing, Manifolds, and Chamber Design
The pump housing forms the structure that contains internal components. Manifolds connect the inlet and outlet paths, while each chamber supports the diaphragm during the pumping action. Key housing and chamber roles include:
- Pressure containment during operation
- Guiding fluid through suction and discharge paths
- Supporting seals, gaskets, and check balls
Damage inside a chamber often shows up as erosion, surface wear, or stress marks. Manifolds must remain aligned to prevent leakage and uneven flow. Housing material such as polypropylene or metal is selected to match fluid resistance requirements.
Inlet and Outlet Check Valves
Check valves ensure fluid moves in one direction during each cycle. In diaphragm pumps, these valves often use check balls and seats. Common check valve features include:
- Balls that lift during suction and seat during discharge
- Springs that assist sealing in some configurations
- Resistance to debris and abrasion
When check balls fail to seat properly, symptoms include backflow, loss of pressure, and reduced performance. Springs may weaken over time, and debris can prevent sealing. These are common replacement parts included in repair kits.
Air Valve Assembly
The air valve is the timing system of an air-operated diaphragm pump. It controls how compressed air alternates between diaphragms. Core air valve functions include:
- Directing air pressure to each side of the diaphragm
- Enabling consistent pumping action
- Regulating cycle speed and energy use
Air valve issues often cause irregular cycling, noise, or stalling. Contamination inside the air valve reduces efficiency and increases repair frequency. Cleaning or replacing air valve components is a common maintenance task.
Shaft, Connecting Rod, and Mechanical Linkages
Many diaphragm pumps use a shaft and connecting rod to link diaphragms and synchronize movement. These components:
- Connect opposing diaphragms
- Transfer force evenly across chambers
- Maintain alignment during operations
Wear on the shaft or connecting rod leads to vibration, uneven stroke length, and accelerated seal failure. Proper alignment helps reduce noise and improve energy efficiency.
Seals, Gaskets, and O-Rings
Seals prevent leaks and maintain pressure separation between chambers and external connections. Key sealing components include:
- O-rings for static and dynamic sealing
- Gaskets between housing sections
- Specialized seals around shafts and manifolds
Seal failure allows air or fluid leakage, reducing suction and discharge efficiency. Material selection is critical, especially for solvents, food processing, or aggressive liquid handling. These pump parts are frequently stocked as replacement parts.
Common Diaphragm Pump Part Failures and Warning Signs
Most diaphragm pump failures develop gradually. Recognizing early signs allows repair before catastrophic damage occurs. Common warning signs include:
- Reduced suction or discharge flow
- Changes in noise or vibration
- Fluid present in the air exhaust
- Loss of pressure consistency
For example, damaged diaphragms allow fluid to enter air chambers, while worn seals cause air leaks. Faulty check balls reduce the vacuum and disrupt the transfer. Tracking these symptoms helps identify which components require repair parts or replacement parts.
How to Inspect and Maintain Diaphragm Pump Parts
Effective maintenance focuses on consistent inspection rather than reactive repair. A simple process protects pump models across industries. Recommended inspection steps include:
- Visual checks for wear, cracks, or residue
- Listening for irregular noise or air leaks
- Verifying fastener torque and alignment
Maintenance intervals depend on pressure levels, fluid abrasiveness, and duty cycle. Using OEM replacement parts ensures correct fit and resistance characteristics. Proper maintenance extends diaphragm life and stabilizes performance.
Diaphragm Pump Parts Compatibility and Material Selection
Material compatibility determines how well diaphragm pumps handle specific liquids and operating conditions. Selection factors include:
- Chemical resistance to fluid and solvents
- Pressure and temperature tolerance
- Abrasion resistance for solids
Using incorrect material leads to swelling, brittleness, or rapid wear. Many pump models support multiple sizes and configurations to accommodate different processes and industries.
When to Repair vs Replace Diaphragm Pump Parts
Repair decisions balance cost, downtime, and safety. Minor issues, such as worn seals or a check ball, usually justify repair using repair kits. Replacement becomes the better option when:
- Multiple components show advanced wear
- Structural damage affects the chamber or manifolds
- Performance remains unstable after repair
Maintaining a stock of critical replacement parts reduces downtime and supports continuous operations.
FAQ: Diaphragm Pump Parts
What are the components of a diaphragm pump?
The basic parts include diaphragms, chambers, manifolds, check balls, air valves, shafts, seals, gaskets, and accessories that support specific configurations.
What is the lifespan of a diaphragm pump?
Lifespan varies by application. With proper maintenance and timely repair, diaphragm pumps can operate for years, though diaphragms and seals require periodic replacement.
What is a diaphragm pump?
A diaphragm pump is a positive displacement pump that moves fluid using flexible diaphragms to create suction and discharge without direct contact between liquid and mechanical energy sources.
How to tell if a diaphragm pump is bad?
Signs include loss of suction, inconsistent pressure, fluid leakage, increased noise, or air escaping where it should not be present.
Conclusion
Diaphragm pumps remain essential across industries because they handle various types of fluid with reliability and control. Understanding diaphragm pump parts at a component level empowers maintenance teams to diagnose issues faster, choose the right repair kits, and use OEM replacement parts effectively. This guide outlines how diaphragms, chambers, air valves, seals, shafts, and pump parts interact to create consistent pumping action. With proper maintenance, thoughtful material selection, and timely repair, teams can extend pump life, improve efficiency, and reduce unexpected downtime. Bookmark this amazing blog and use it as a reference during inspections, training sessions, or repair planning to keep diaphragm pumps operating at their best.
