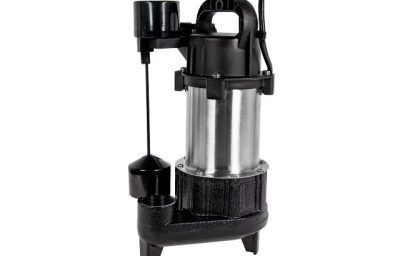

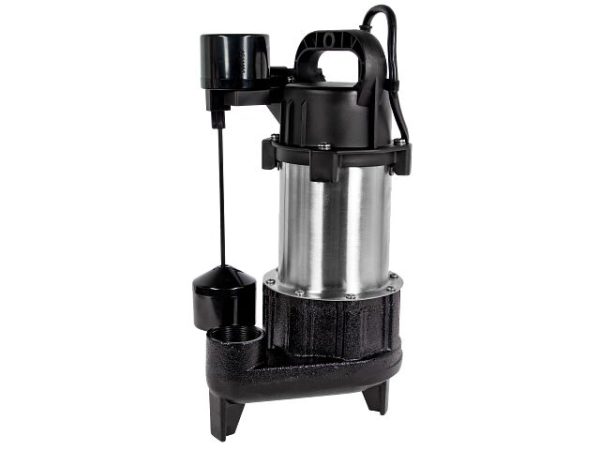

16EC Series Sump & Effluent Pump

Click to rate this post!

[Total: 0 Average: 0]

When a water removal job calls for high performance, the 16EC Series sump and effluent pump delivers leading durability and design. The 1 horsepower Permanent Split Capacitor (PSC) motor is housed inside a rugged stainless-steel body for reliable, completely submersible continuous-duty operation. Ideal for a variety of wastewater, sewage removal, dewatering and water transfer applications.

Features & Benefits

1 hp Permanent Split Capacitor (PSC) motor
Completely submersible, designed for continuous duty operations
Fully automatic with Piggyback vertical flot switch
Capable of fitting 18′ diameter basin
Stainless steel motor body
Cast iron volute/base
Capable of passing¾” solids

Overview

Stainless steel construction and an integral vertical float switch provide steady, continuous operation without getting hung up on external objects. The compact unit fits easily inside an 18-inch diameter basin, making it a versatile solution for most basement sump pits, delivering reliable 24/7 operation when needed.

Specifications

Capacity	80 gpm @ 5′
Shut Off	35′ (9.1 m)
Max. Liquid Temp.	140 °F (60 °C)
Discharge	1-1/2″ (38.1 mm)
Impeller	Nylon
Electrical	115 V, 60 Hz, 8 A, 925 W
Operation	Automatic

Performance

Head	GPM (LPM)
5′	80 (302.8)
10′	72 (273)
15′	60 (227)
20′	50 (189)
30′	22 (83)
