| Item: | 14942785 |

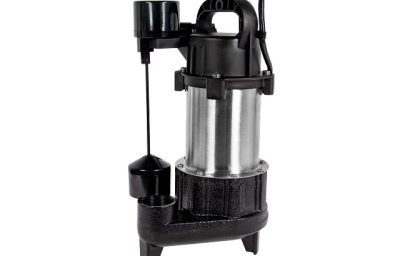

| Model: | 16EC-SSA-V (115V, 10-Ft Cord, Vertical Float Switch) |
| Item: | 14942785 |
| Model: | 16EC-SSA-V (115V, 10-Ft Cord, Vertical Float Switch) |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Full Load Watts | 925 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Motor Type | PSC |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 80 gpm / 4800 gph |
| Shut-Off | 35 ft |
| Shut Off Height – 60Hz | 35 ft |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Float / Vertical |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Stainless Steel |
| Pump Volute Material | Cast Iron |
| Impeller Type | Semi-open |
| Impeller Material | Glass-Filled Nylon |
| Discharge Material | Cast Iron |
| Intake Screen Material | Not Applicable |
| Fasteners Material | Stainless Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.8 “ |
| Product Width | 7.6 “ |
| Product Height | 15.2 “ |
| Pump Length | 8.8 “ |
| Product Weight | 29.8 lb |
| Product Weight w/ Pack | 33 lb |
| Carton Length | 11.6 “ |
| Carton Width | 10.6 “ |
| Carton Height | 18.1 “ |
| Off Level – Range | 3″ – 5″ |
| On Level – Range | 9.5″ – 11.5″ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
