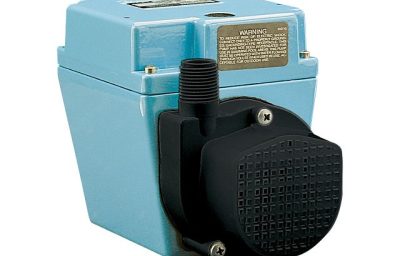

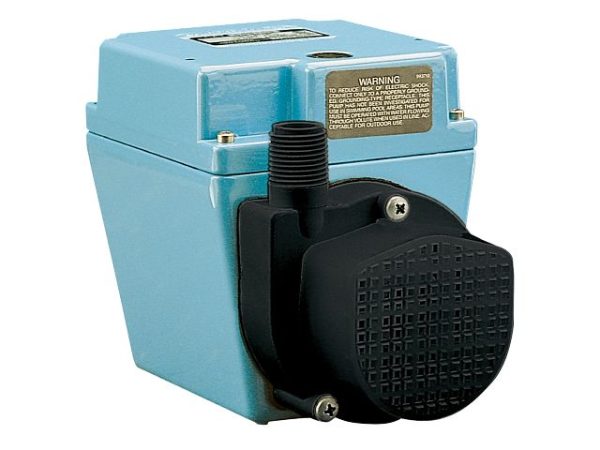

3E-12NRY Series Oil-Filled Submersible Pump
The 3E-12NRY Series from Little Giant is a dual-purpose small oil-filled submersible pump that may be used submersed or in-line (fed with pipe or hose) in commercial, industrial, and home applications. These applications for this small oil-filled submersible pump include statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated.
Features & Benefits
- 1/15 hp, oil-filled heavy-duty motor
- Epoxy coated cast aluminum housing and cover
- Nylon volute
- Aluminum backplate
- Fluoroelastomer (FKM) shaft seal
- Polypropylene screen
Overview
Dual-purpose oil-filled small submersible pump that may be used totally submersed or in-line (fed with pipe or hose). For commercial, industrial, and home applications, this compact 600 GPH pump features a 1/2″ MNPT discharge and 21′ shut-off head capability. This small submersible pump is designed to handle intermittent temperatures up to 120 °F (49 °C).
Specifications
| Capacity | 600 gph @ 1′ |
| Shut Off | 21′ (6.4 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/2″ MNPT (12.7 mm) |
| Impeller | Nylon |
| Electrical | 230 V, 50/60 Hz, 1.7/1.4 A |
Performance
| Head | GPH (LPH) |
| 1′ | 600 (2271.2) |
| 3′ | 580 (2195.5) |
| 5′ | 517 (1957.1) |
| 10′ | 414 (1567.2) |
| 20′ | 90 (340.7) |
Order Information
3E-12NRY Series Small Submersible Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 503216 | 3E-12NRY | 230 VAC | 10 gpm / 600 gph | 21 ft | 12 ft |
